-6%

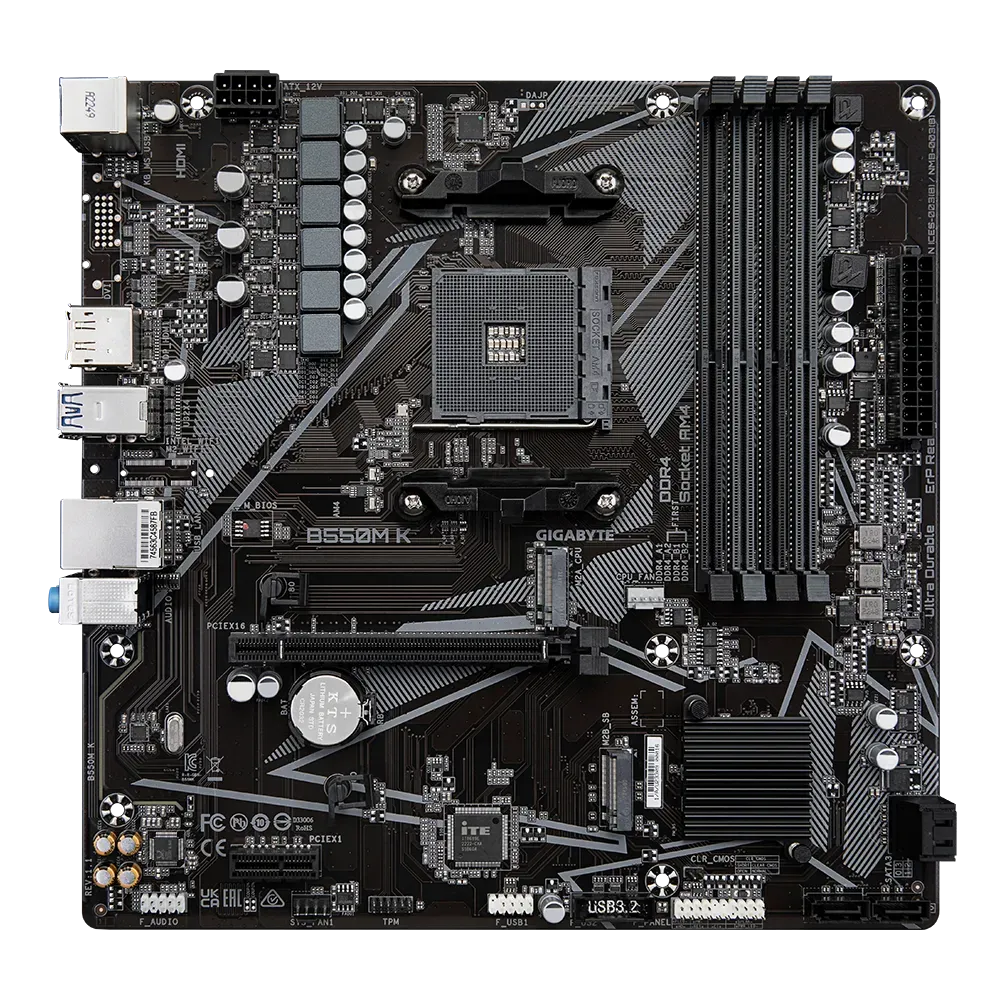

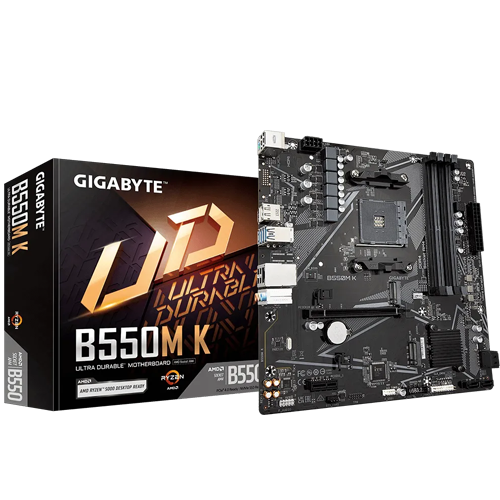

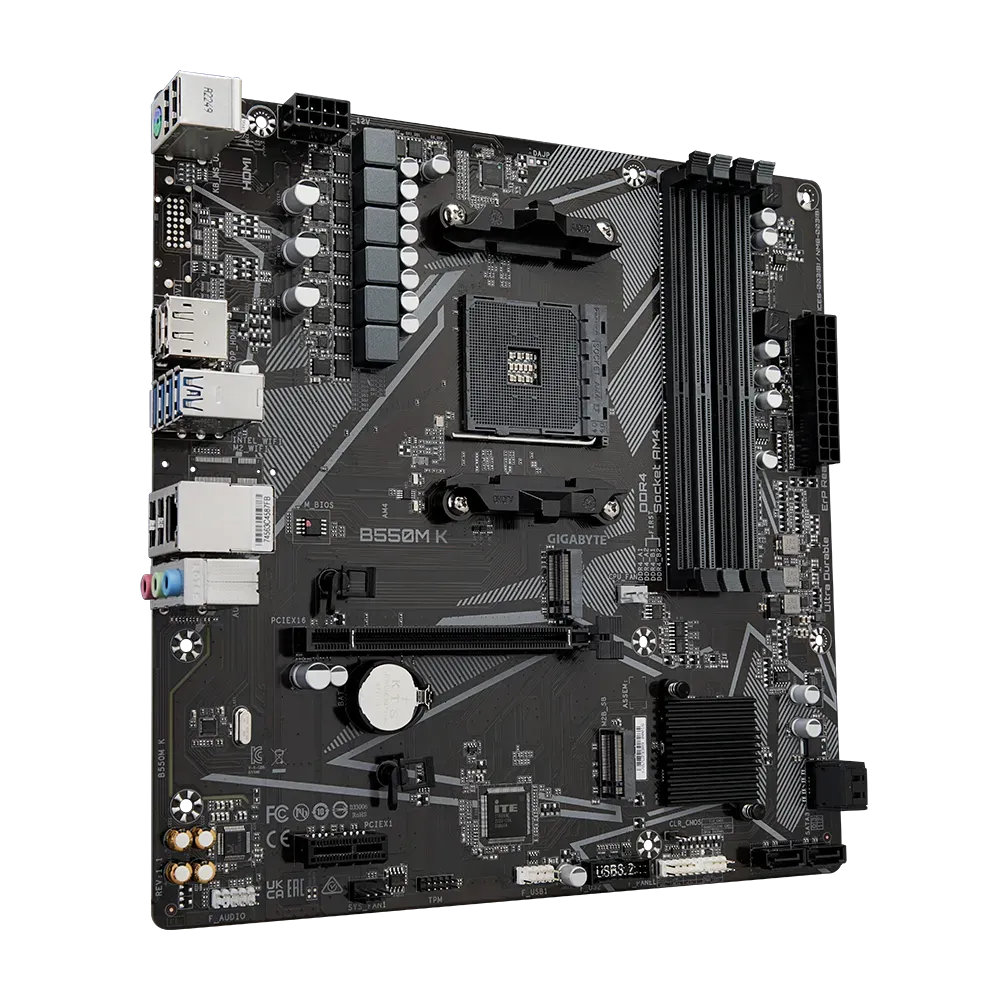

Gigabyte B550M K (HDMI/DP)

Availability:

Out of stock
Add to wishlist
Compare
  • Form Factor: mATX
  • Socket: AM4 (Ryzen 2000, 3000, 4000, 5000 series)
  • Memory Type: DDR4
  • RAM Slot: 4
  • SATA Port: 4
  • M.2 Slot: 2 (1x Gen4, 1x Gen3)
  • Display Connector: HDMI, DP
  • WiFi/Bluetooth: None
  • 3-Pin ARGB Sync: None

SOLD OUT

Out of stock

Compare
Brand

Gigabyte
Socket

AM4
Memory Type

DDR4
Form Factor

mATX
CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Chipset AMD B550
Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Onboard Graphics 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Audio Realtek® Audio CODEC
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot
Storage Interface 1 x M.2 PCIe 4.0
1x M.2 PCIe 3.0
4 x SATA 6Gb/s connectors
USB 8x USB Port on back panel (4x USB 3.2, 4x USB 2.0)

1 x USB 3.2 Gen 1 internal USB header
1x USB 2.0 internal USB header
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
ARGB/RGB Sync Header NONE

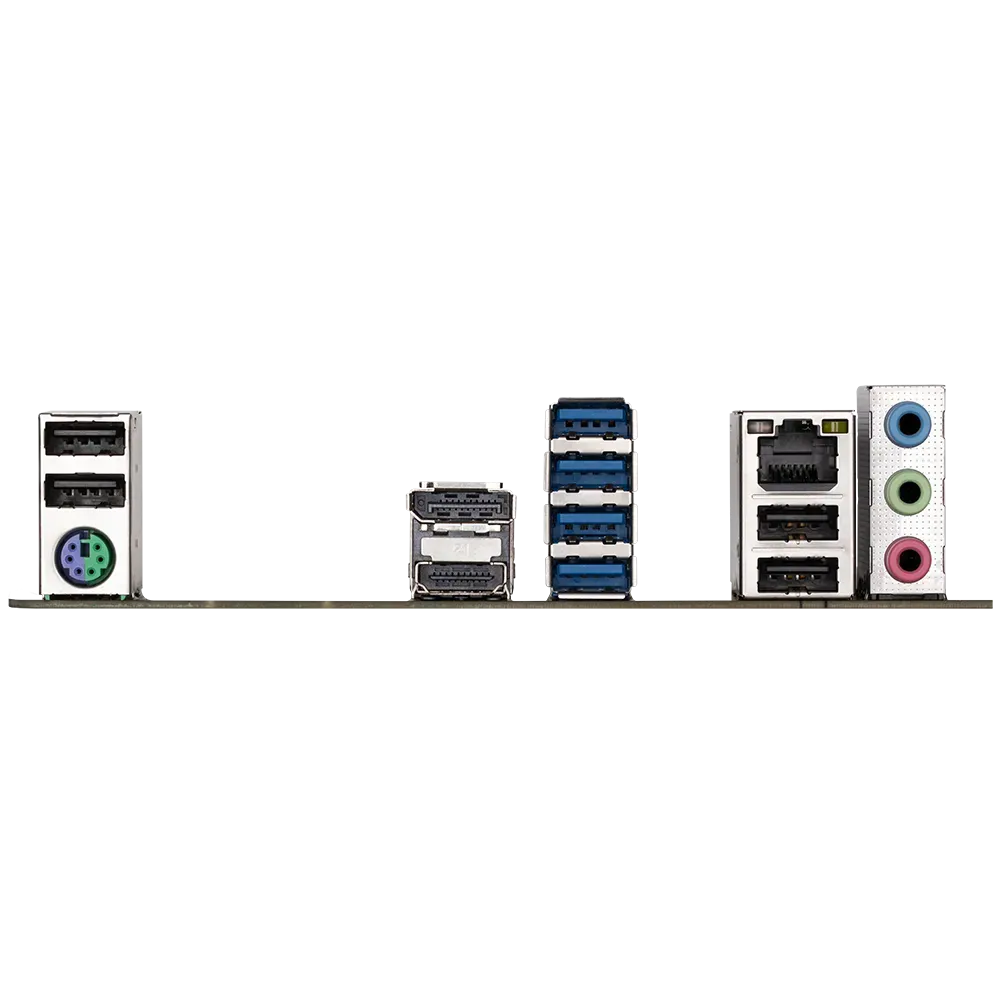

Back Panel Connectors 1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
