Gigabyte B850 AORUS ELITE WIFI7 (AM5)

✓Form Factor: ATX

✓Socket: AM5 (Ryzen 7000, 8000, 9000 series)

✓VRM: 14+2+2 Twin Digital

✓Memory Type: DDR5

✓RAM Slot: 4

✓PCIe Max Support: 5.0

✓SATA Port: 4

✓M.2 Slot: 3 (1x PCie 5.0, 2x PCIe 4.0)

✓Display Connector: DP, HDMI

✓WiFi/Bluetooth: WIFI7 (2.4/5/6 GHz), Bluetooth 5.4

✓Back USB Ports: 1x USB-C, 5x USB 3.2, 4x USB 2.0

Pre-order

🏷️ Pre-order Item

~₱15,200(subject for checking)

📦 Lead time: 5-7 business days after order confirmation

💰 Down payment is required to pre-order this item

Please sign in to request a price quote.

✨ 100% Brand New

🛡️ Secure payments via GCash or Bank Transfer

🛵 Same day delivery within Lucena and nearby areas

📦 Shipping available via LBC Express

🏬 In-store pickup available

About this item

CPU	AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors
Chipset	AMD B850
Memory	Support for DDR5 up to 8200 (O.C) 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Onboard Graphics Port	1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 7 RTL8922AE 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.4
Expansion Slots	1 x PCI Express x16 slot (PCIEX16) PCIe 5.0 x16 mode 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
Storage Interface	1 x M.2 connector PCIe 5.0 2 x M.2 connector PCIe 4.0 4 x SATA 6Gb/s connectors
USB	CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelCPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panelChipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headersChipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

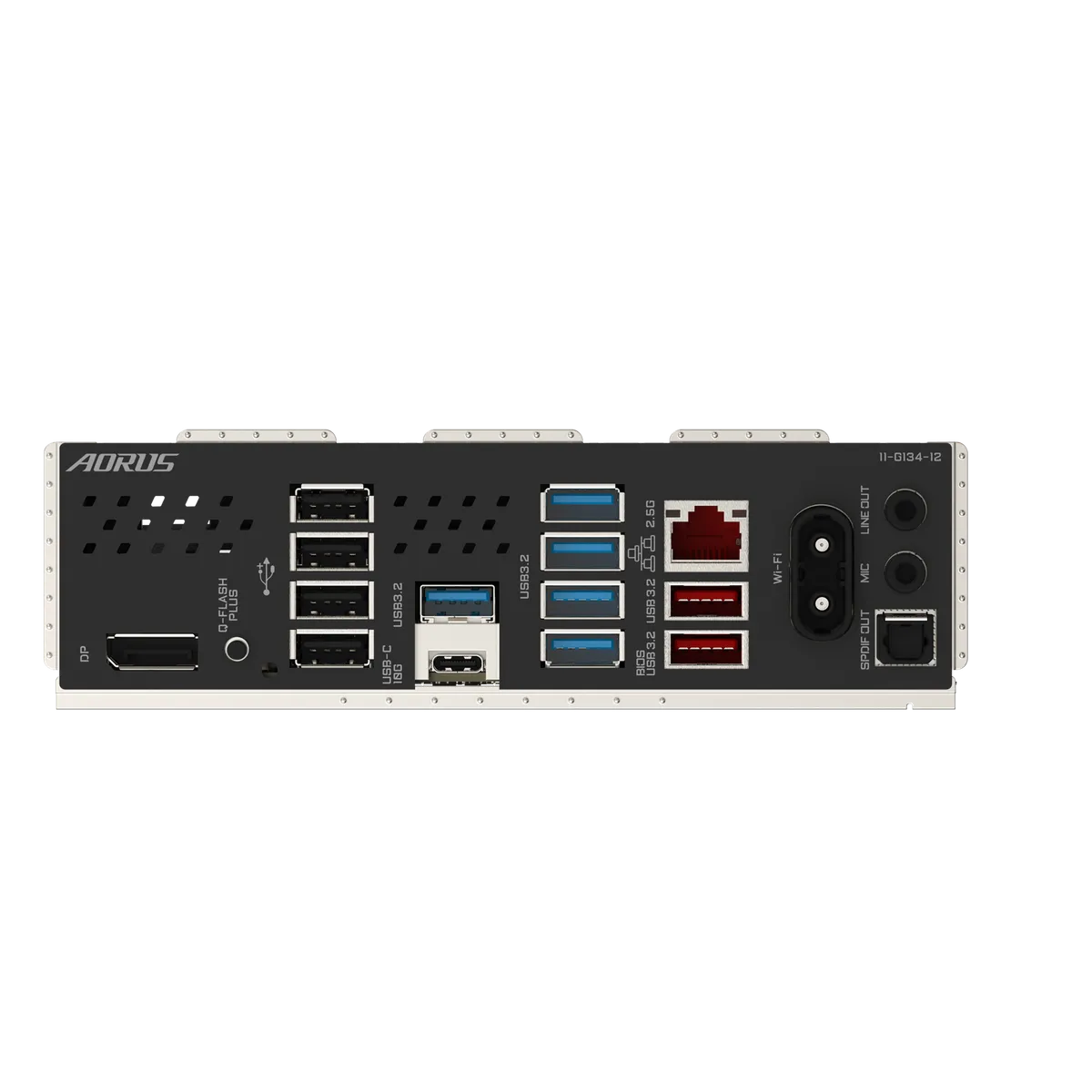

Back Panel Connectors	1 x DisplayPort (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Unique Features	Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
