Gigabyte B860M GAMING X WIFI6E (LGA1851)

Out of Stock

✓Form Factor: mATX

✓Socket: LGA 1851 (Intel Core ULTRA Series 15th gen)

✓VRM: 8+1+2 Twin Digital

✓Memory Type: DDR5

✓RAM Slot: 4

✓PCIe Max Support: 5.0

✓SATA Port: 4

✓M.2 Slot: 2 (1x PCie 5.0, 1x PCIe 4.0)

✓Display Connector: DP, HDMI, USB-Type C

✓WiFi/Bluetooth: WIFI6E (2.4/5/6 GHz), Bluetooth 5.3

✓Back USB Ports: 1x USB-C, 4x USB 3.2, 4x USB 2.0

This item is currently out of stock.

📱 Pay via GCash, Bank Transfer

📦 Cash on Delivery available

About this item

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset	Intel® B860 Express Chipset
Memory	Support for DDR5 9200(O.C) 4 x DDR5 DIMM sockets supporting up to 256 GB
Onboard Graphics Port	1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 6E AX211 (PCB rev. 1.0/2.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standardRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1/2.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
Expansion Slots	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface	1 x M.2 connector PCIe 5.0 x4/x2 1 x M.2 connector PCIe 4.0x4/x2 4 x SATA 6Gb/s connectors
USB	CPU: - 1 x USB4® USB Type-C® port on the back panelChipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

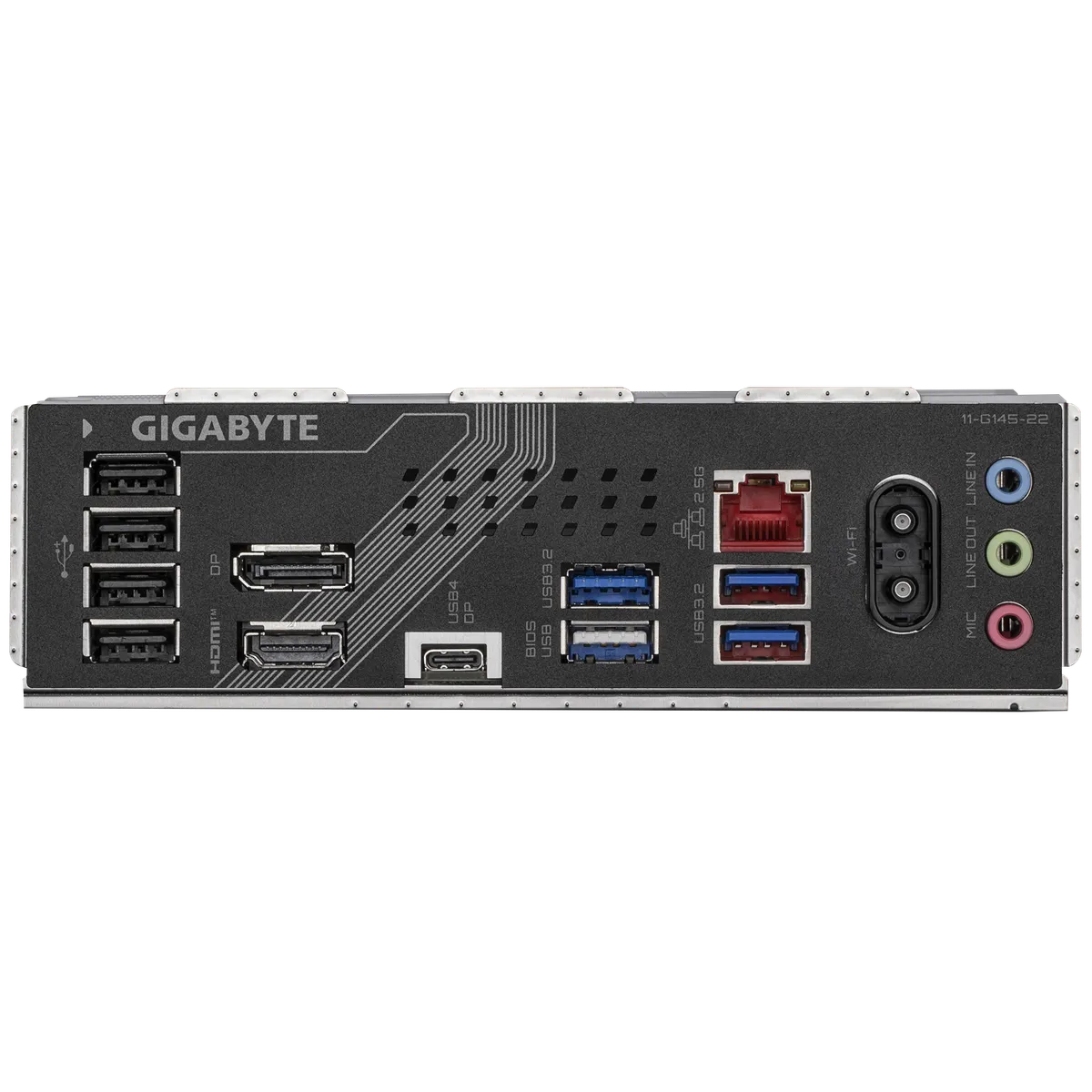

Back Panel Connectors	1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB4® USB Type-C® port (DisplayPort (Note)) 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
