About this item
| General | |

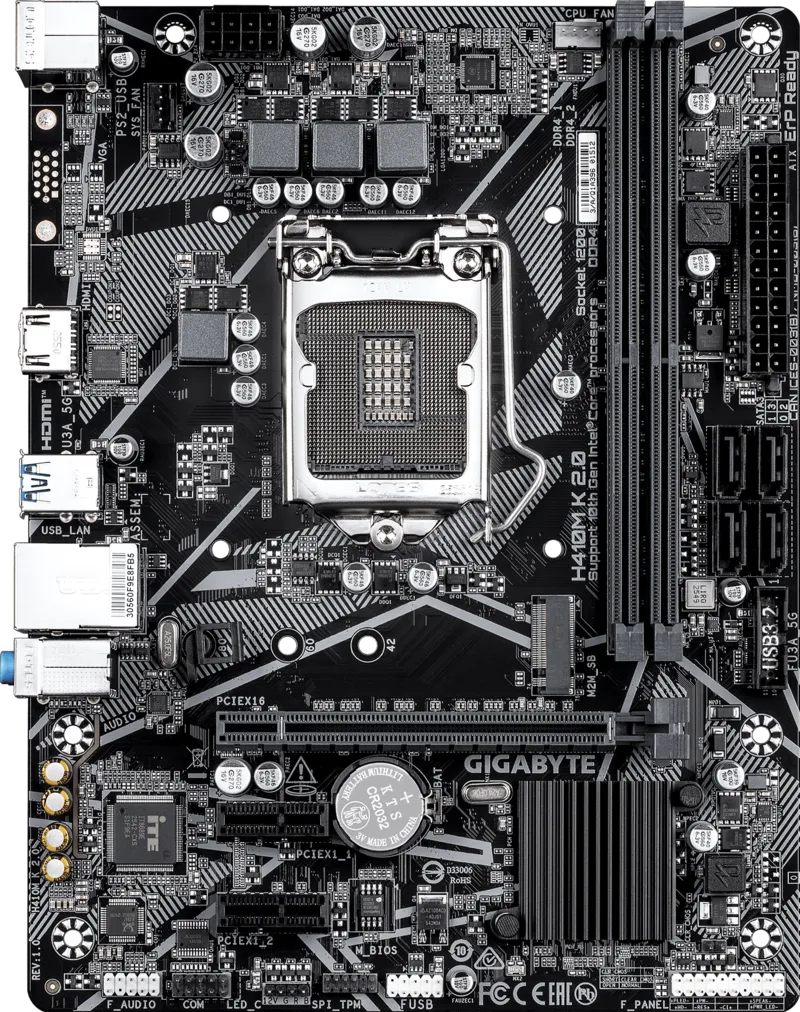

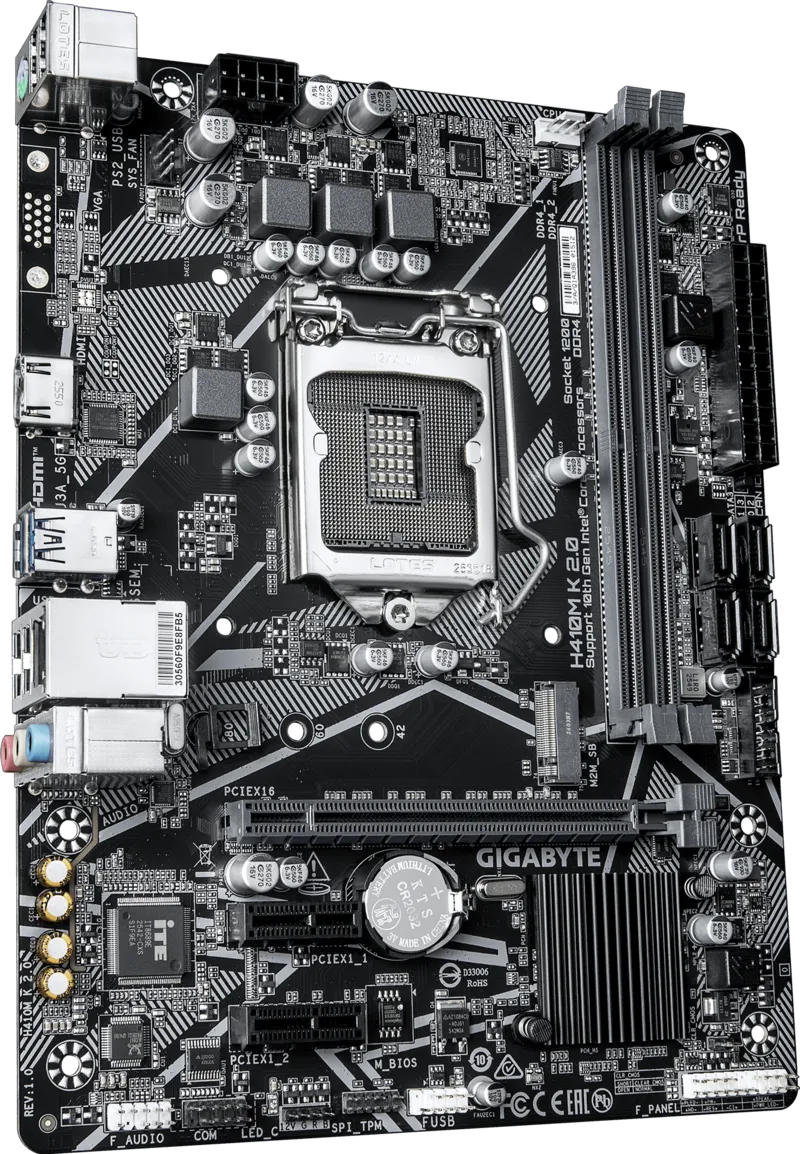

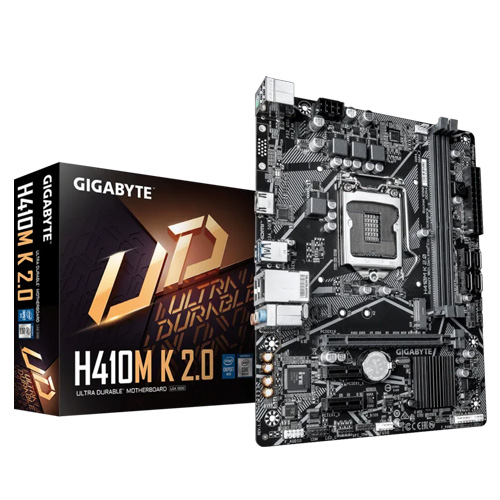

| Model | GIGABYTE H410M K 2.0 |
| Chipset | Intel H410 Express |
| Form Factor | Micro-ATX |
| Dimensions | 226 × 174 mm |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| CPU | |
| Socket | LGA1200 |
| CPU Support | 10th Gen Intel Core i9 / i7 / i5 / i3 Intel Pentium Intel Celeron |
| Memory | |
| Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum Memory | 64GB |
| Maximum DIMM Capacity | 32GB |
| Memory Architecture | Dual Channel |
| Core i9 / i7 Memory Speeds | DDR4 2933 / 2666 / 2400 / 2133 MHz |
| Core i5 / i3 / Pentium / Celeron Memory Speeds | DDR4 2666 / 2400 / 2133 MHz |
| ECC Support | ECC Un-buffered DIMMs supported in non-ECC mode |
| Non-ECC Support | Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| XMP Support | Yes |
| Graphics | |
| HDMI | 1 × HDMI 1.4 |
| Maximum Resolution | 4096 × 2160 @ 30Hz |
| HDCP | HDCP 2.3 |
| Graphics Support | Requires processor with integrated graphics |
| Expansion Slots | |
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 2 |
| PCIe x16 | PCIe 3.0 x16 |
| PCIe x1 | PCIe 3.0 x1 |
| Storage | |
| M.2 Slots | 1 |
| M.2 Interface | PCIe 3.0 x2 / SATA |
| M.2 Socket | M Key |
| M.2 Sizes | 2242 / 2260 / 2280 |
| SATA | 4 × SATA 6Gb/s |
| Networking | |
| Ethernet | Realtek GbE LAN |
| Ethernet Speed | 10 / 100 / 1000 Mbps |
| USB | |
| USB 3.2 Gen 1 | 4 Ports 2 × Rear 2 × Front via Internal Header |
| USB 2.0 / 1.1 | 6 Ports 4 × Rear 2 × Front via Internal Header |
| Audio | |
| Audio Codec | Realtek Audio CODEC |
| Audio Type | High Definition Audio |
| Audio Channels | 2 / 4 / 5.1 / 7.1-Channel |

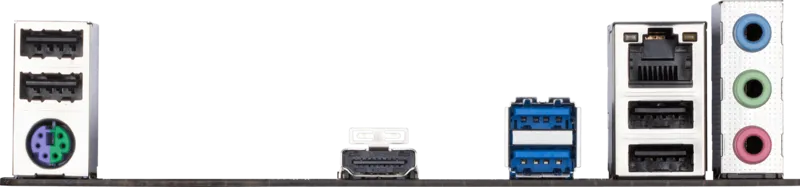

| Back Panel I/O | |
| PS/2 | 1 × Keyboard / Mouse Port |
| HDMI | 1 |
| USB 3.2 Gen 1 | 2 × Type-A |
| USB 2.0 / 1.1 | 4 × Type-A |
| Network | 1 × RJ-45 |
| Audio | 3 × Audio Jacks |
| Internal Connectors | |
| Main Power | 1 × 24-pin ATX |
| CPU Power | 1 × 8-pin ATX 12V |
| CPU Fan | 1 |
| System Fan | 1 |
| M.2 | 1 |
| SATA | 4 |
| RGB | 1 × RGB LED Strip Header |
| Front Panel | 1 |
| Front Audio | 1 |
| USB 3.2 Gen 1 | 1 × Header |
| USB 2.0 / 1.1 | 1 × Header |
| TPM | 1 × TPM Header |
| Serial Port | 1 × Header |
| Clear CMOS | 1 × Jumper |
| Hardware Monitoring | |
| Monitoring | Voltage Temperature Fan Speed Water Cooling Flow Rate |
| Fan Fail Warning | Yes |
| Fan Speed Control | Yes |
| BIOS | |
| BIOS | 1 × 128 Mbit Flash |
| BIOS Type | AMI UEFI BIOS |
| Standards | PnP 1.0a DMI 2.7 WfM 2.0 SMBIOS 2.7 ACPI 5.0 |
| Features | |
| Smart Fan 5 | Yes |
| Q-Flash | Yes |
| APP Center | Yes |
| APP Center Utilities | @BIOS Ambient LED EasyTune Smart Backup System Information Viewer |
| Anti-Sulfur Resistors | Yes |
| Software | |
| Bundled Software | Norton Internet Security (OEM Version) |
