| Brand | Gigabyte |
|---|---|
| Model | RTX 5070 |
| Graphics Processing | GeForce RTXâ„¢ 5070 |
| Core Clock | 2587 MHz (Reference card : 2512 MHz) |
| CUDA® Cores | 6144 |
| Memory Clock | 28 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR7 |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=290 W=120 H=50 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 16 Pin*1 |

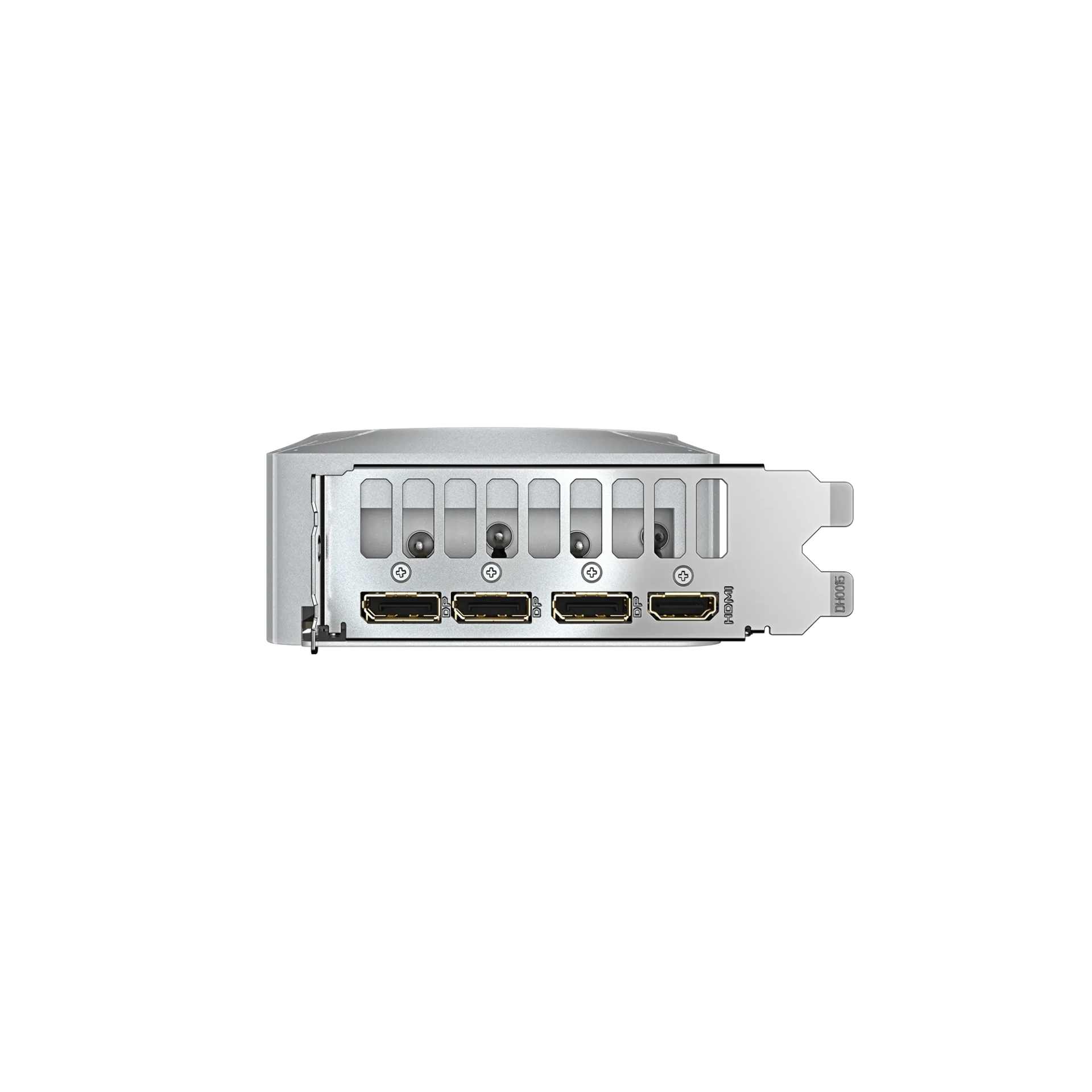

| Output | DisplayPort 2.1b *3 HDMI 2.1b *1 |

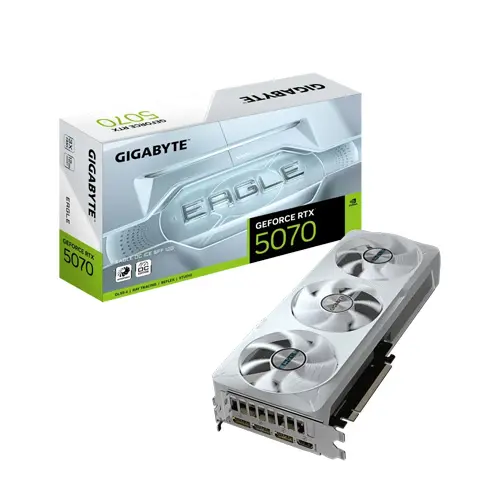

| Accessories | Quick guide 1x 12V-2×6 to 2x PCIe 8pin adapter |
