Motherboard

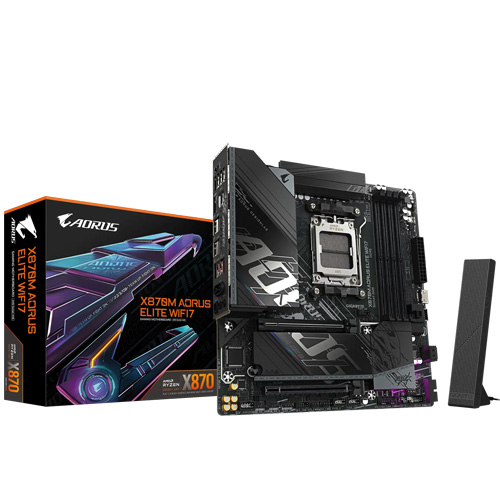

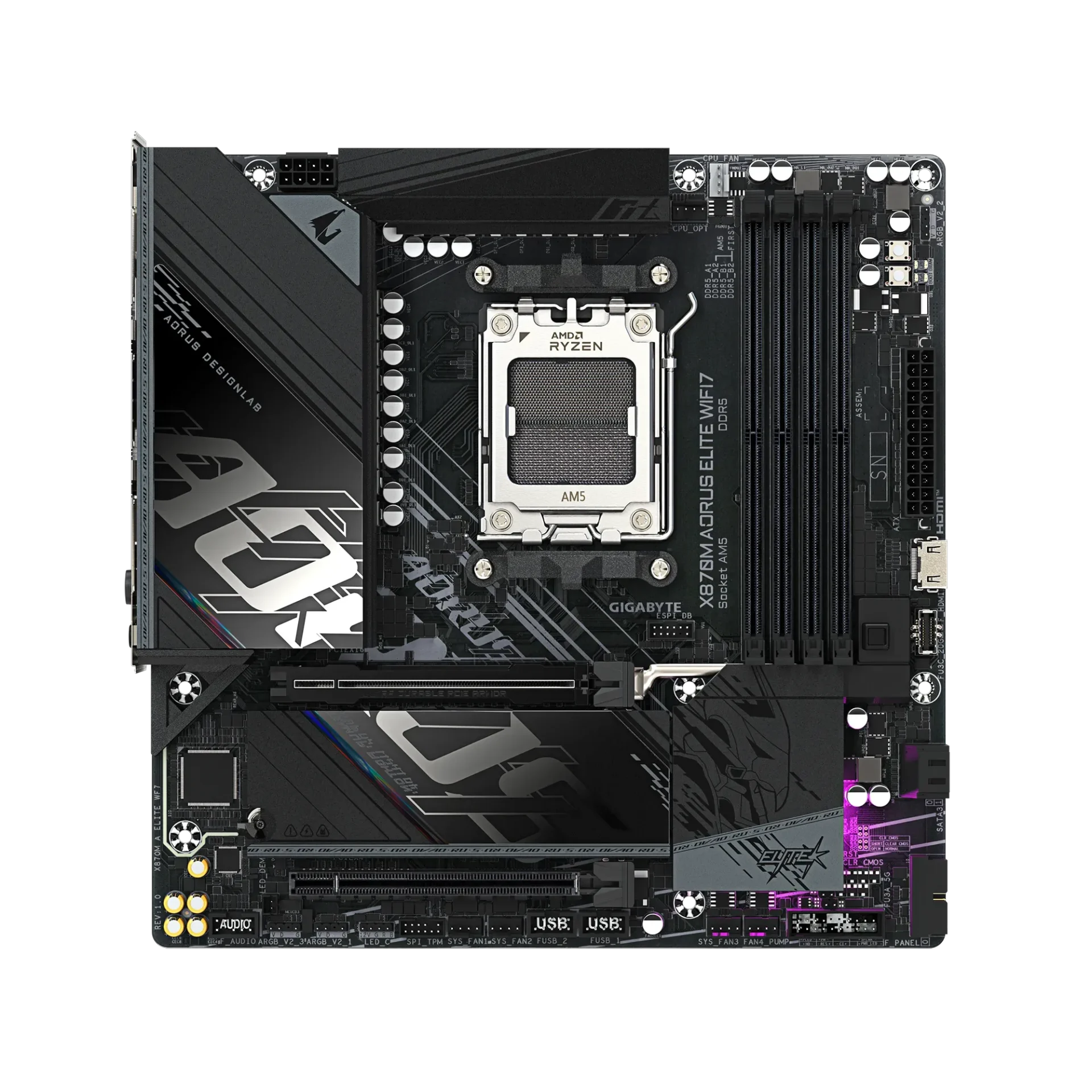

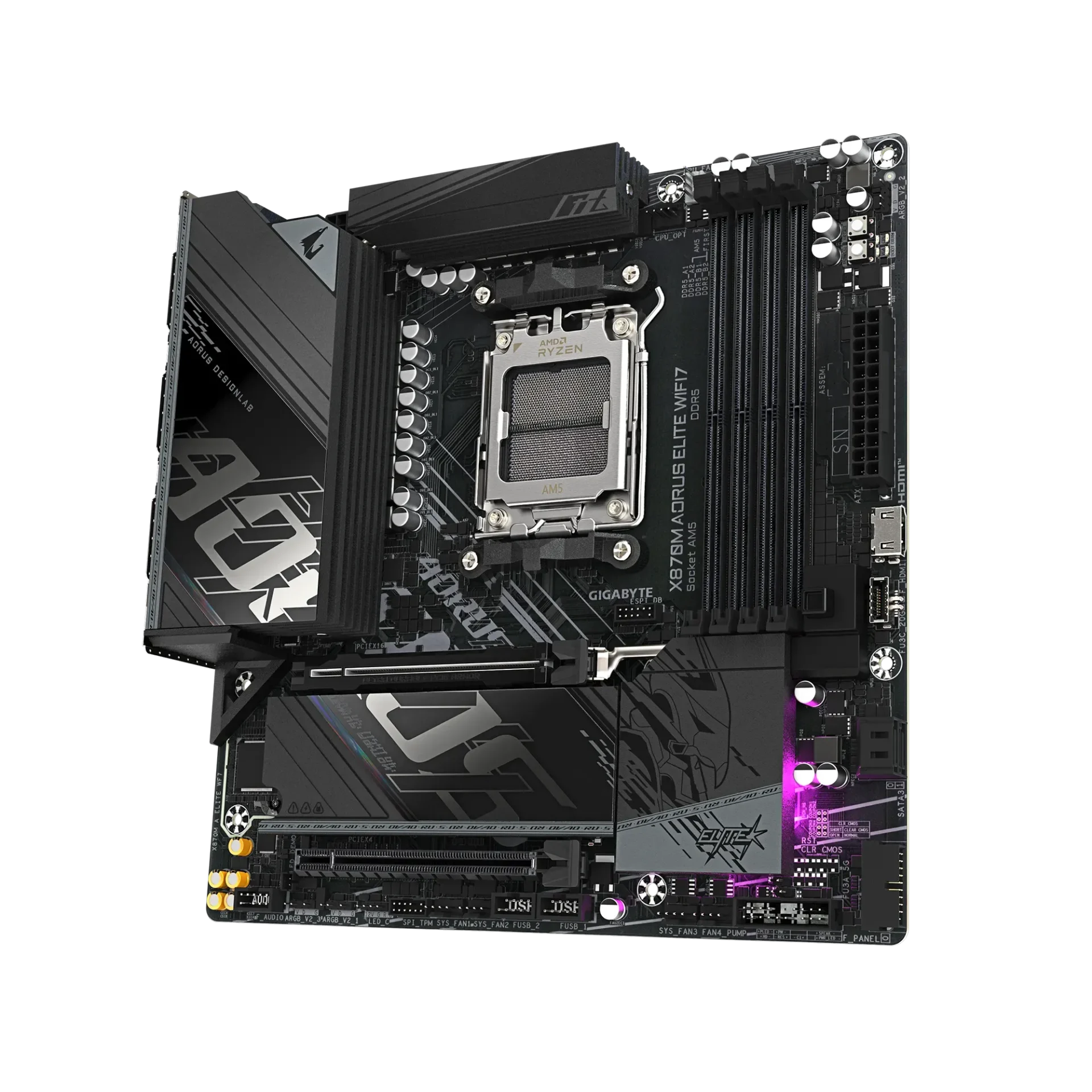

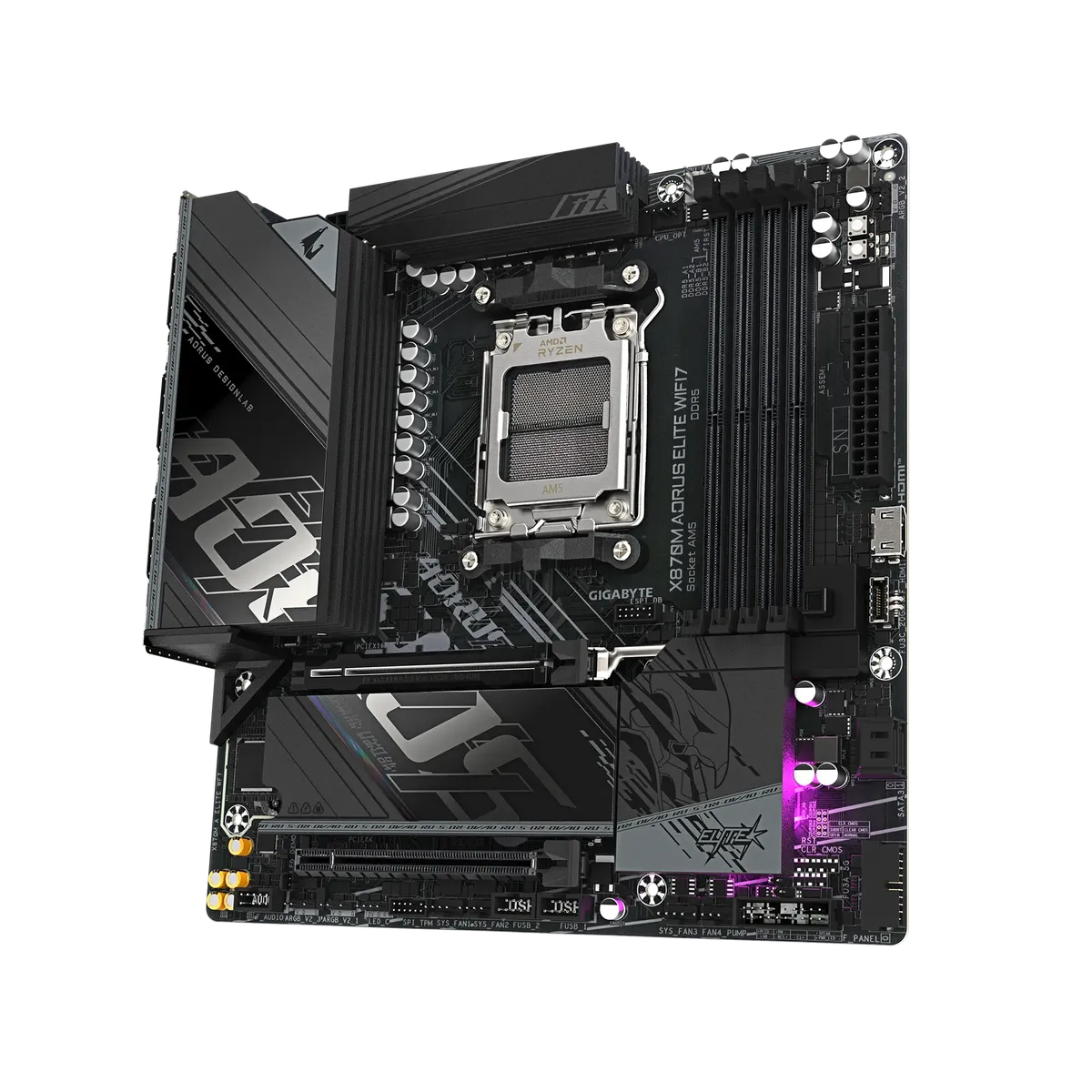

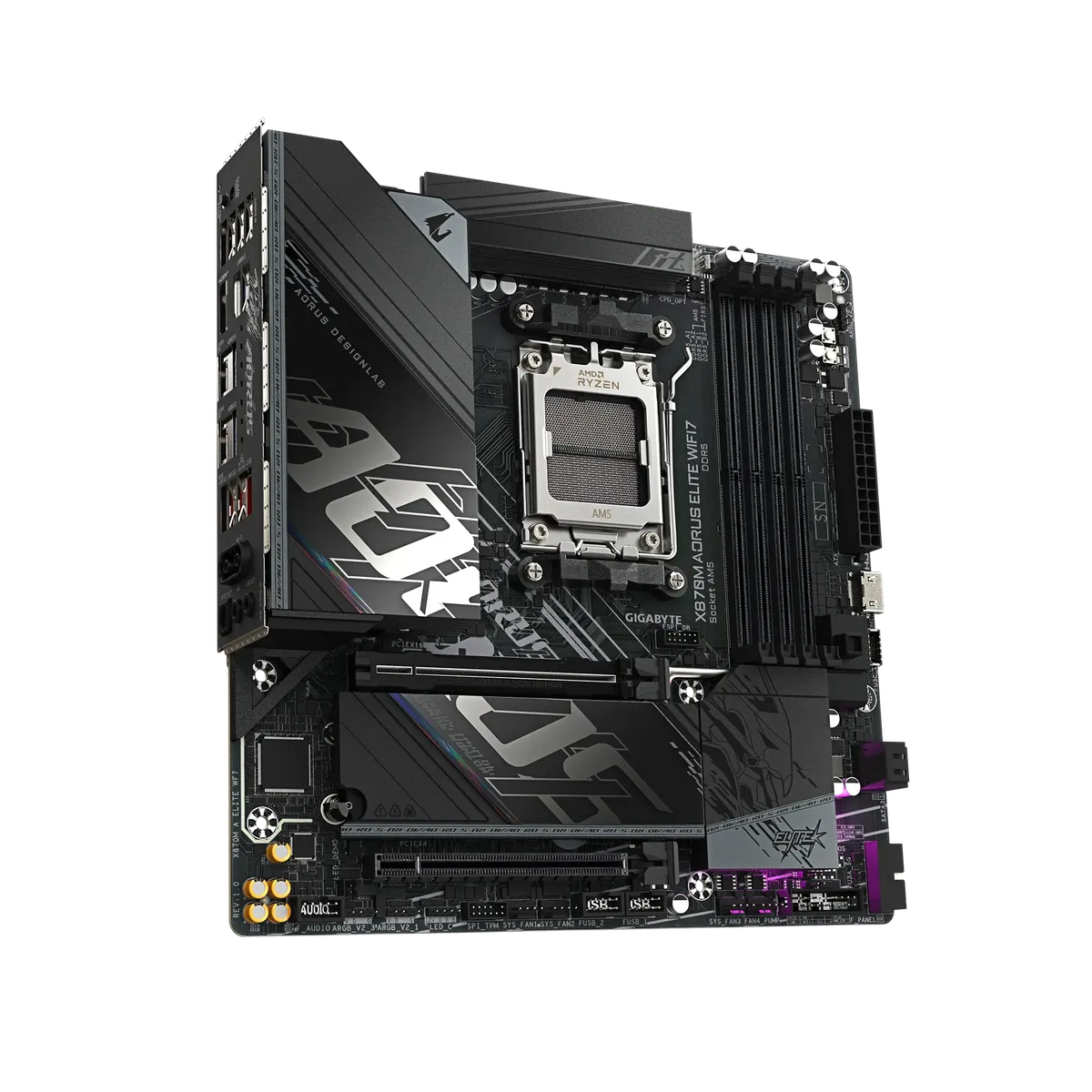

Gigabyte X870M AORUS ELITE WIFI7 (AM5)
Limited Stock
₱13,950
₱16,300
Cash price
1
📱 Pay via GCash, Bank Transfer
📦 Cash on Delivery available
About this item
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | Support for DDR5 up to 8200(O.C) 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for AMD EXPO™ and XMP memory modules |
| Onboard Graphics Ports | 1 x HDMI 2.1 port 1 x HDMI 1.4 port 2 x USB-C video ports |
| Audio | Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz) Bluetooth 5.4 Supports 11be 160MHz standard |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16) up to PCIe 5.0 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Storage Interface | 1 x M.2 connector up to PCIe 5.0 1 x M.2 connector up to PCIe 4.0 2 x SATA 6Gb/s connectors |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header (USB 3.2 Gen 2×2) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x TPM header 1 x HDMI port* 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

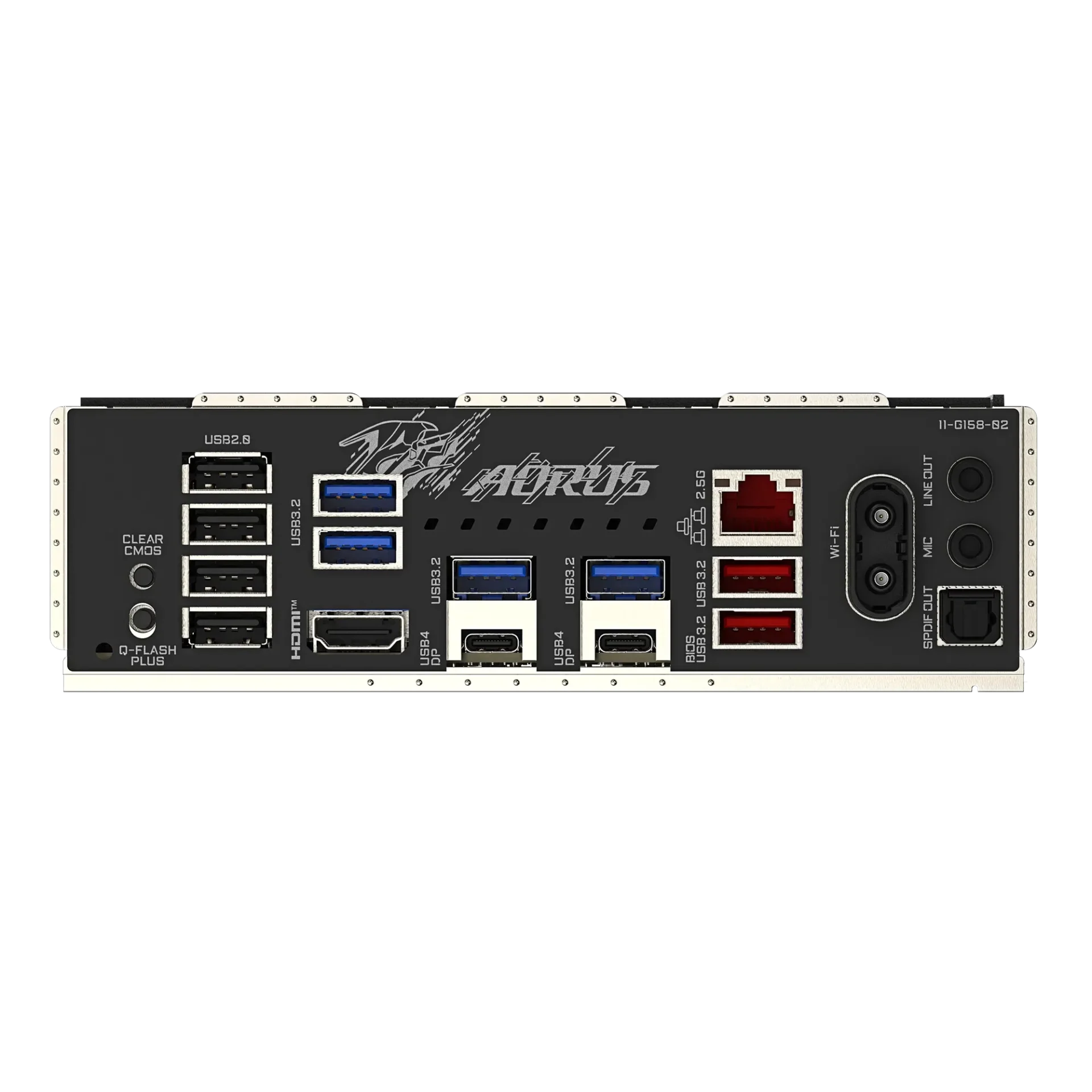

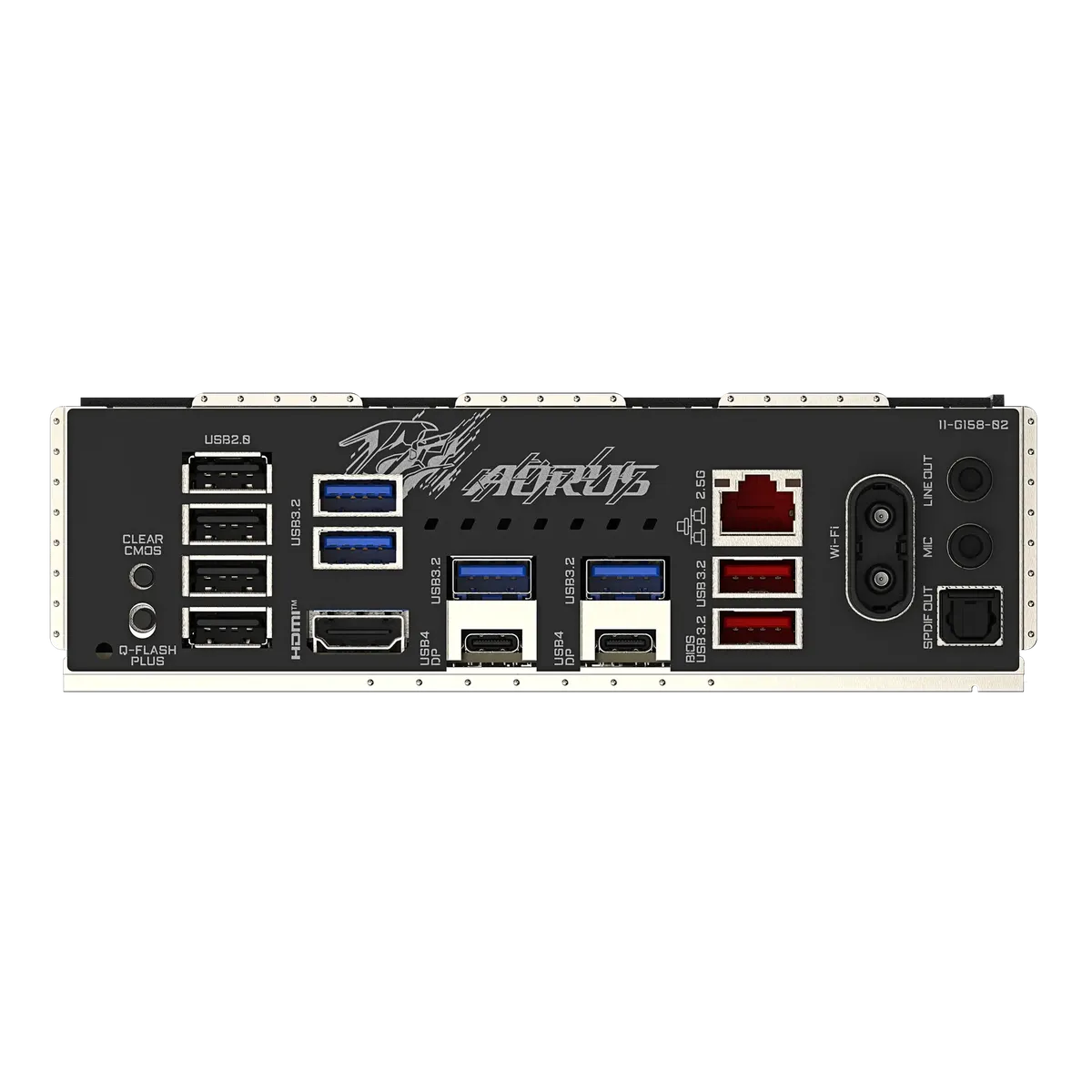

| Back Panel Connectors | 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x HDMI port* 4 x USB 2.0 ports 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A (red) 2 x USB4 Type-C (DisplayPort) 1 x RJ-45 LAN 2 x antenna connectors 2 x audio jacks 1 x optical S/PDIF Out |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Quick Info
🏷️ BrandGigabyte
🛡️ Warranty1 Year Service Center
30 days In-Store Replacement
30 days In-Store Replacement
🔗 Product PageView on Gigabyte Website
