Motherboard

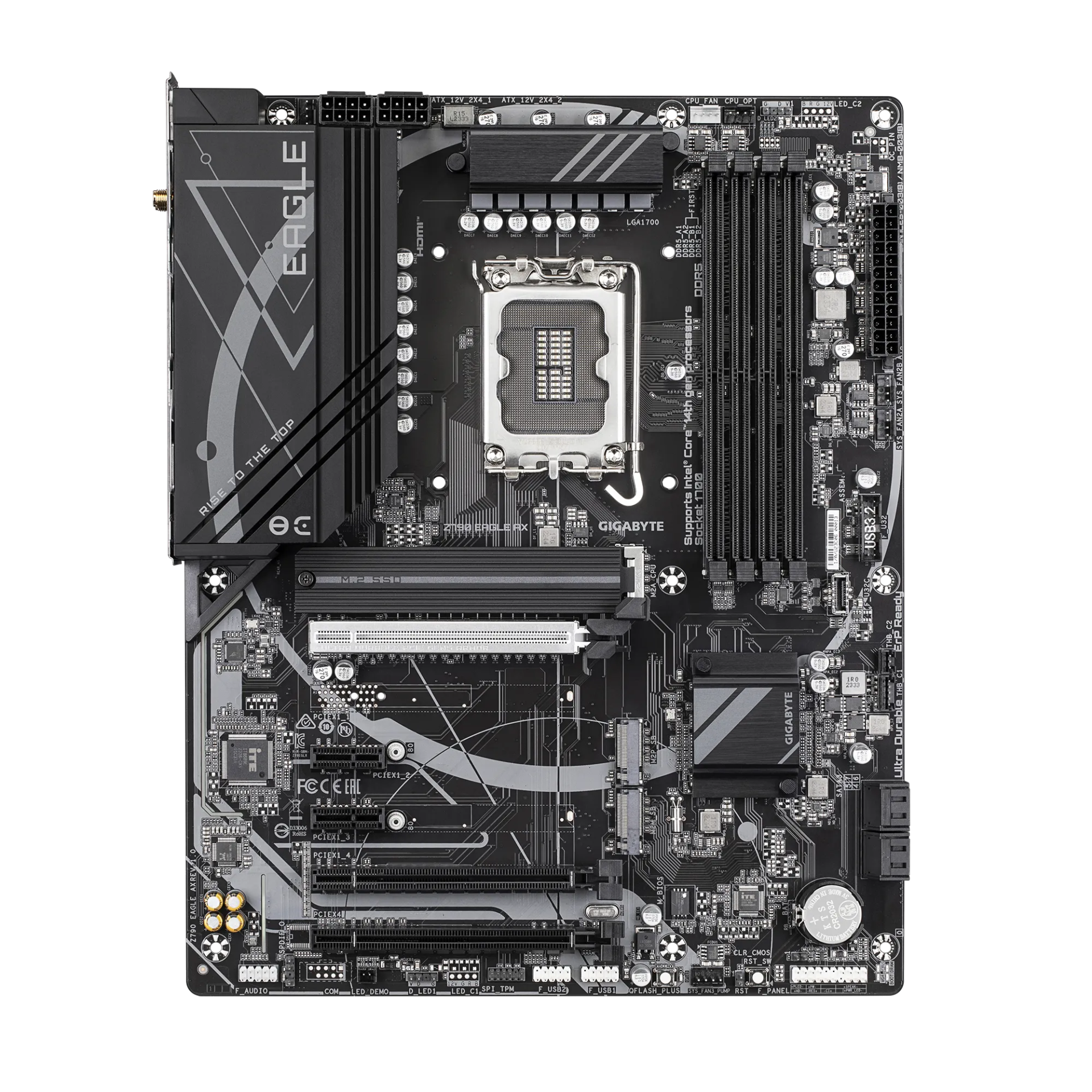

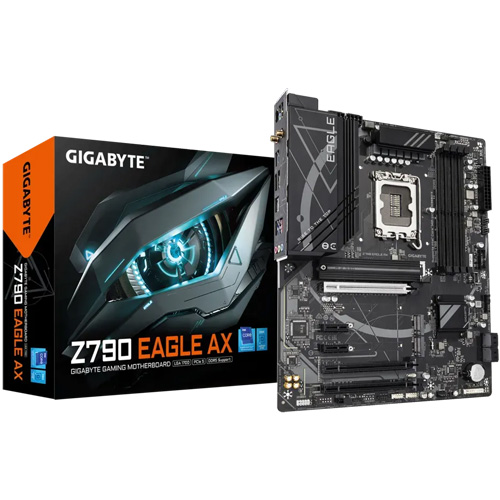

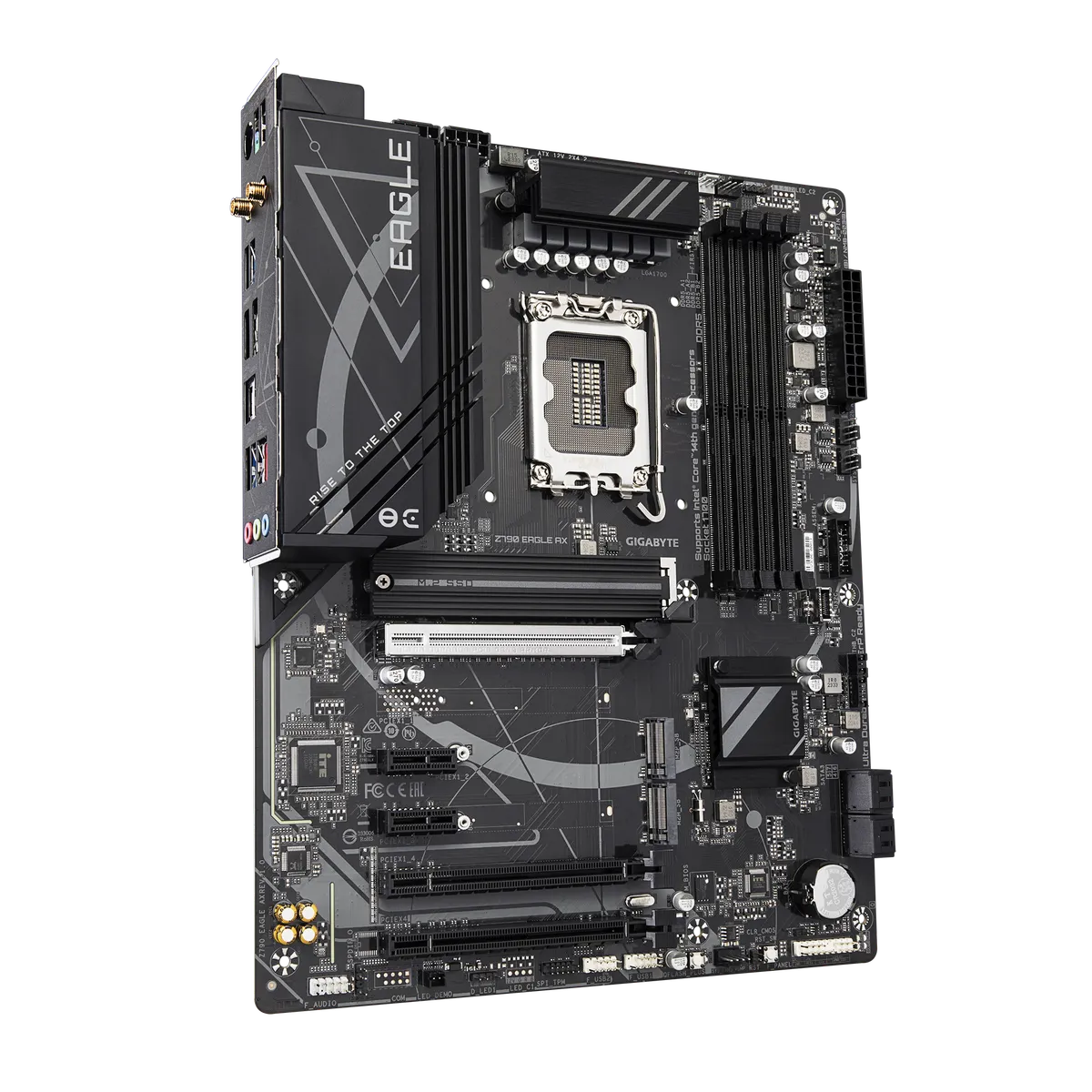

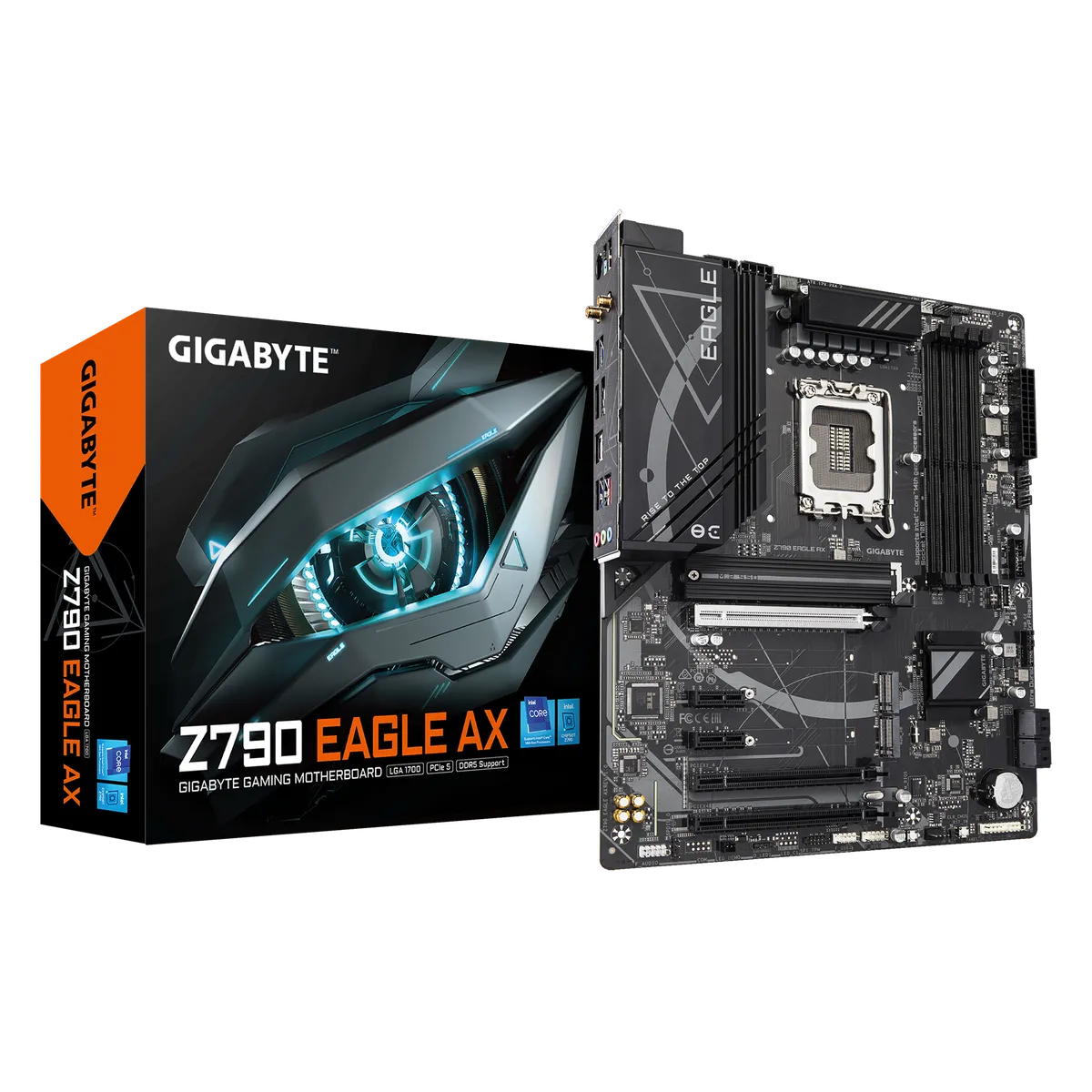

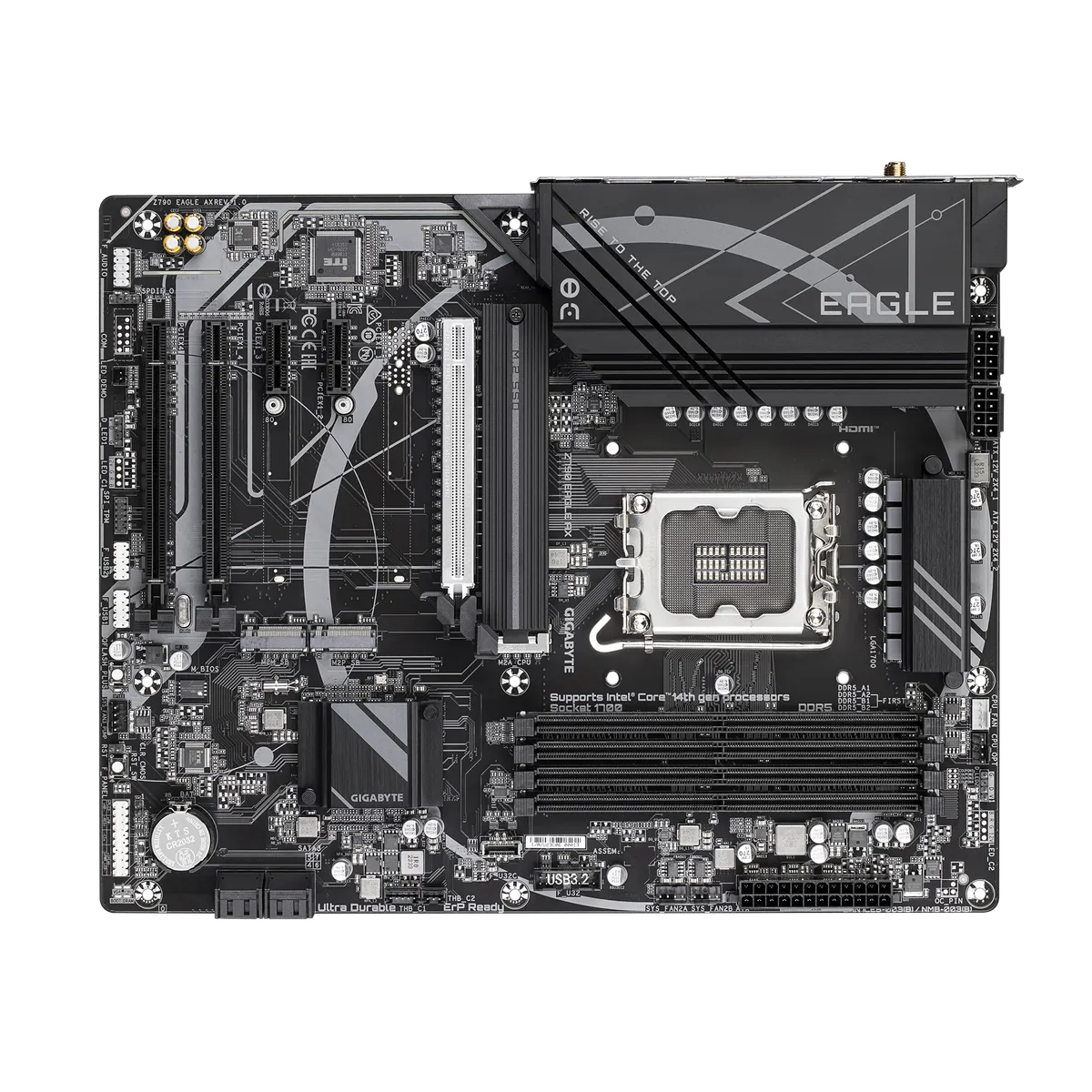

Gigabyte Z790 EAGLE AX DDR5 (WIFI/BT)
Out of Stock
Out of Stock
✓Form Factor: ATX
✓Socket: LGA 1700 (Intel 12th, 13th, 14th)
✓VRM: Twin 12+1+1
✓Memory Type: DDR5
✓RAM Slot: 4
✓PCIe Max Support: 5.0
✓SATA Port: 4
✓M.2 Slot: 3 (3x PCIe 4.0)
✓Display Connector: DP, HDMI
✓WiFi/Bluetooth: WIFI6E (2.4/5/6 GHz), Bluetooth 5.3
✓Back USB Ports: 1x USB-C, 5x USB 3.2, 2x USB 2.0
This item is currently out of stock.
📱 Pay via GCash, Bank Transfer
📦 Cash on Delivery available
About this item
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® Z790 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory DDR5 up to 7600(OC) |
| Onboard Graphics Ports | 1 x HDMI 2.1 port 1 x DisplayPort 1.2 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standardRealtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |
| Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Storage Interface | 3 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support 4 x SATA 6Gb/s connectors |
| USB | Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

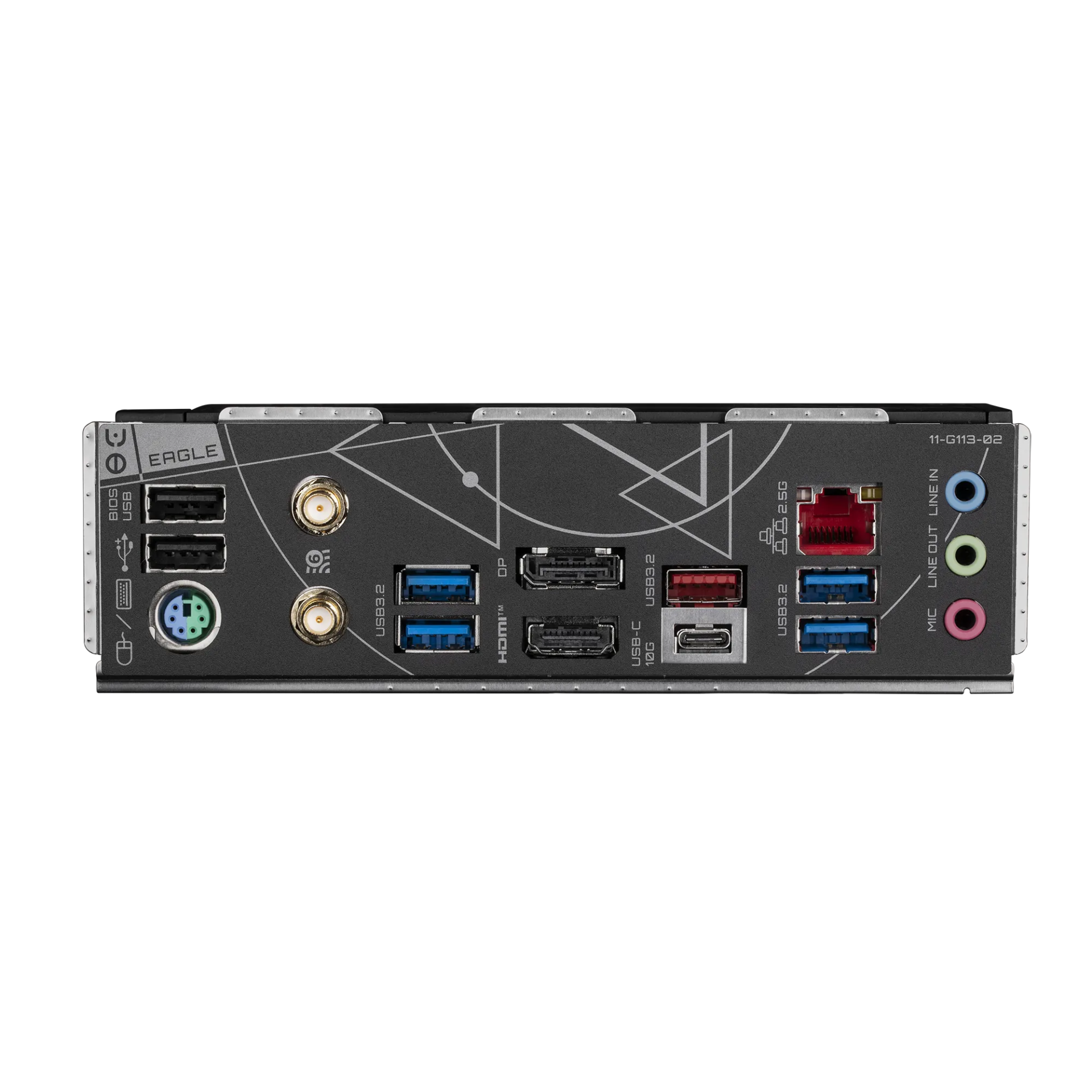

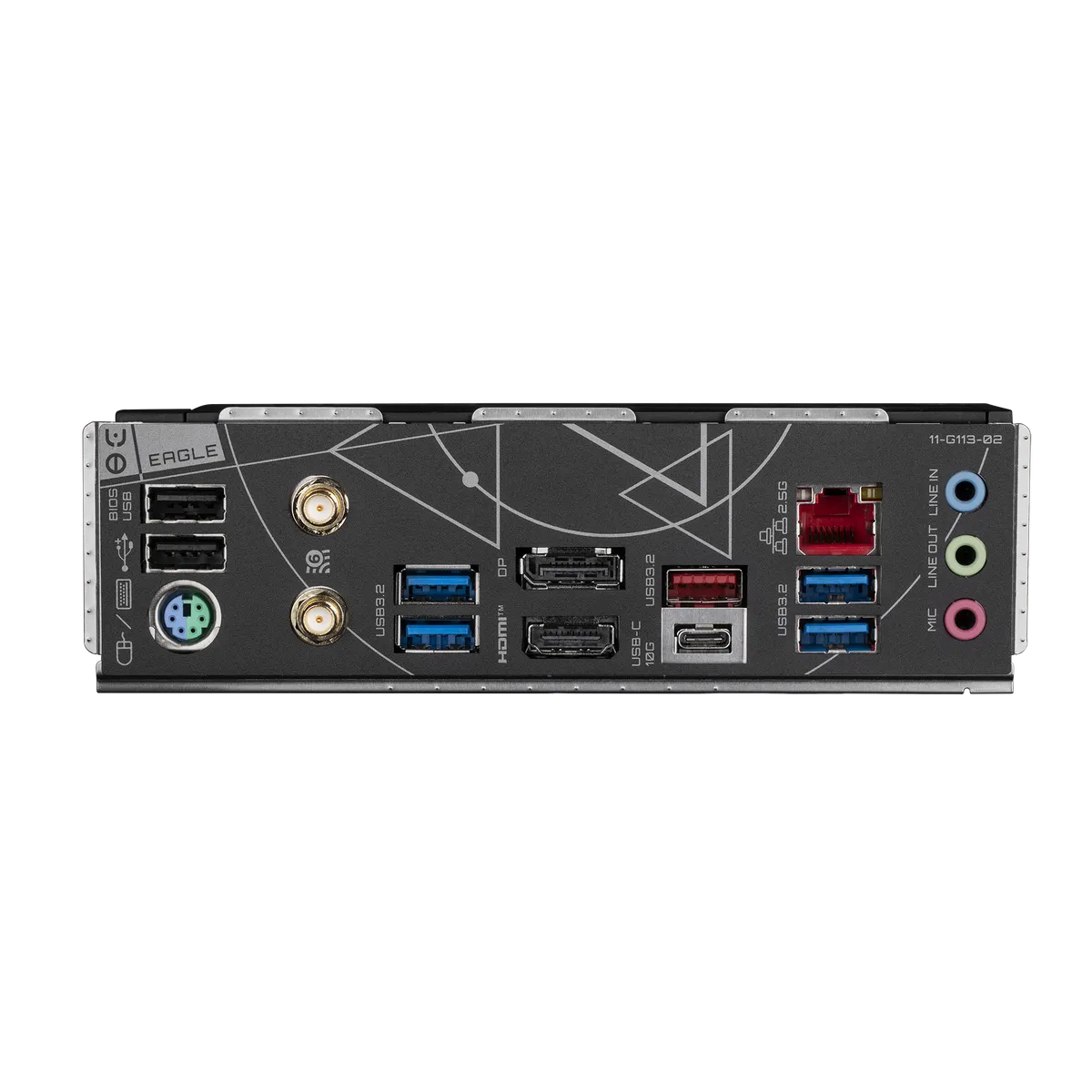

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
