Motherboard

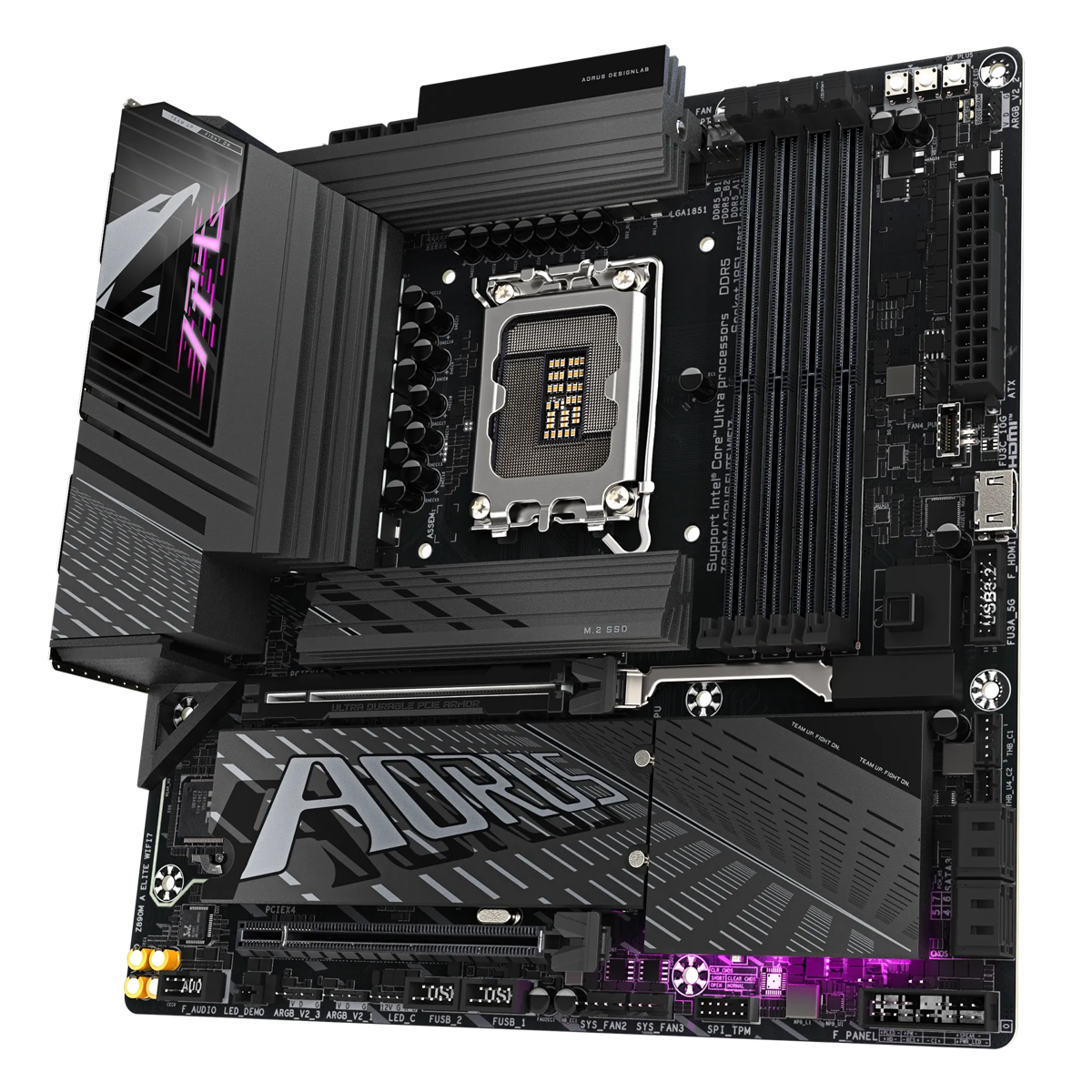

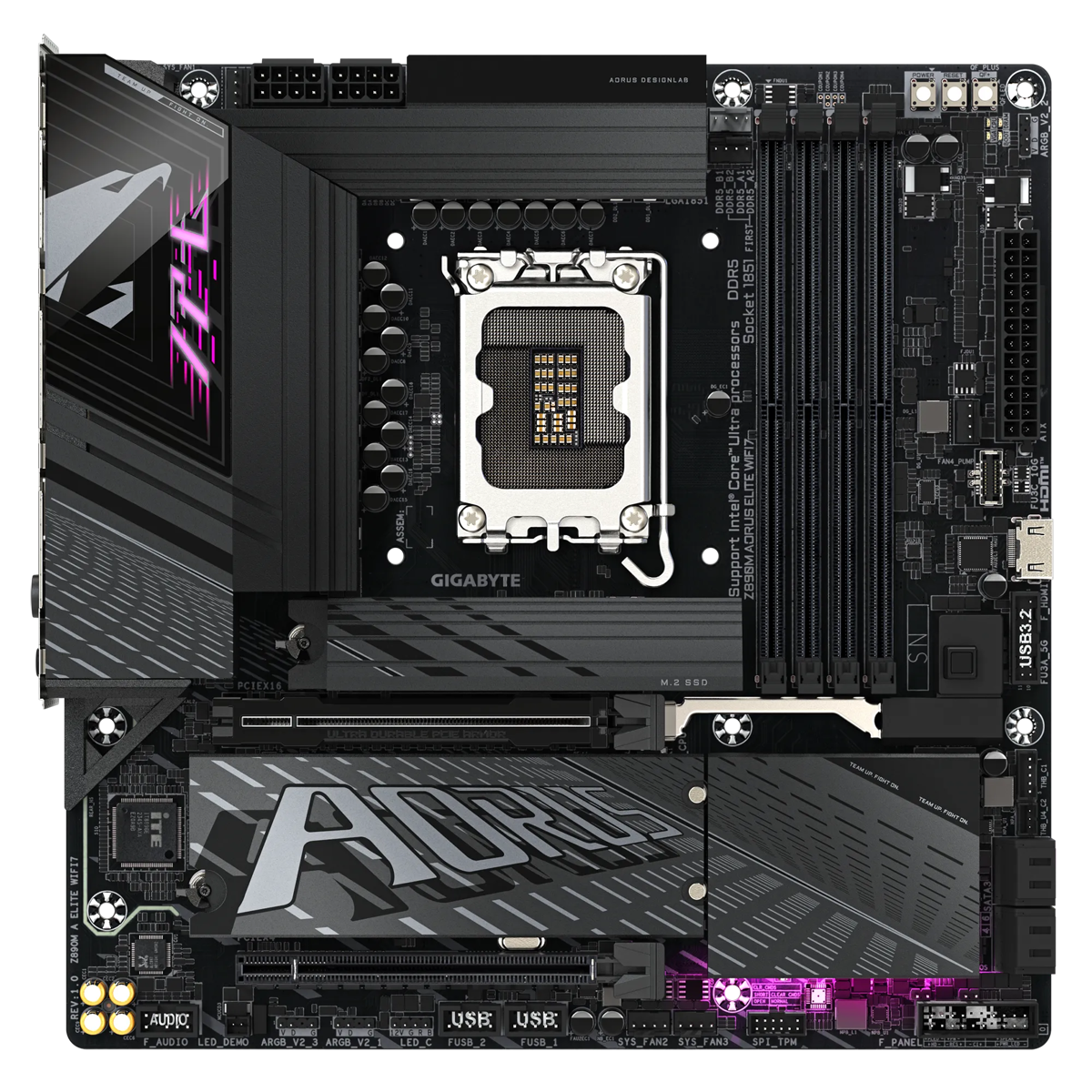

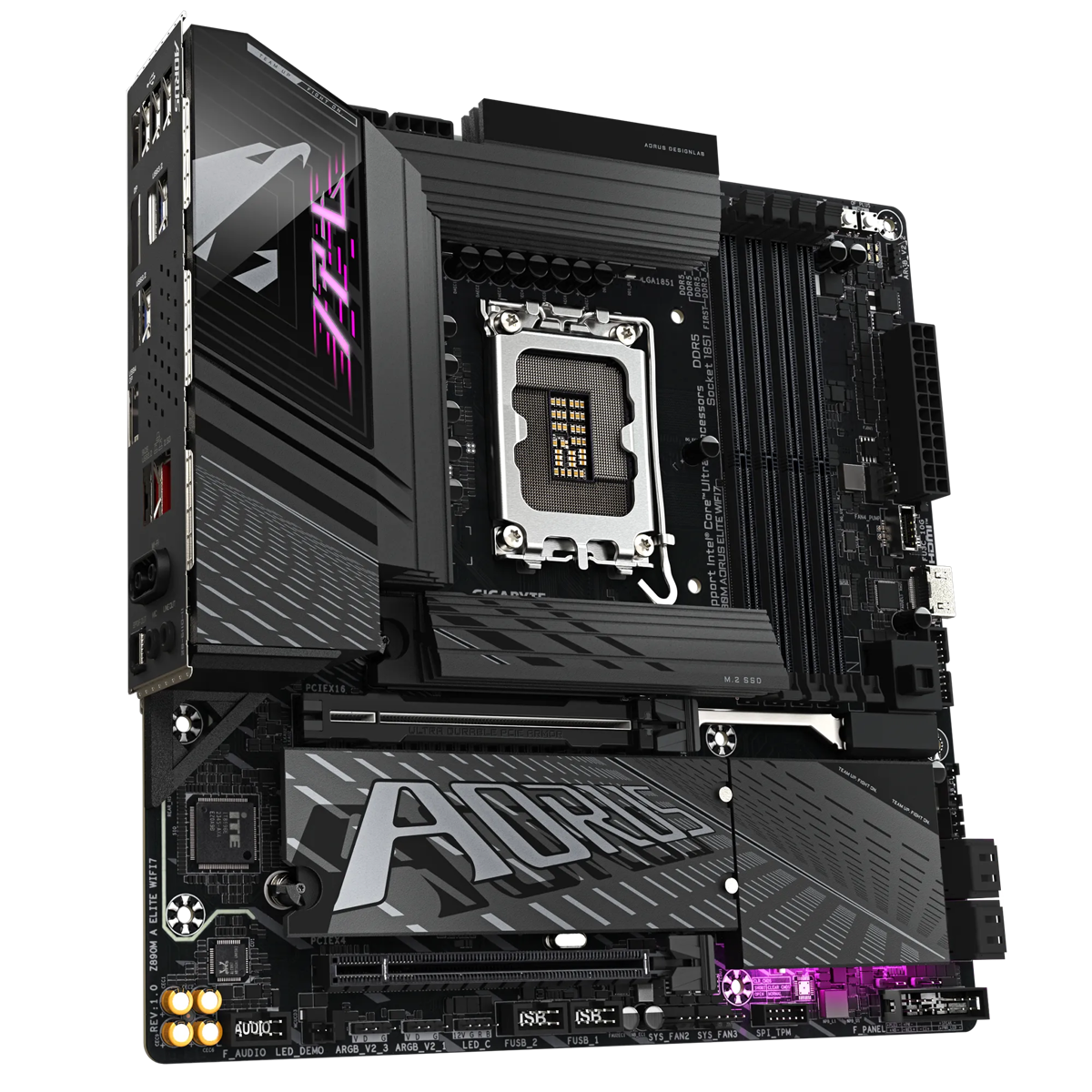

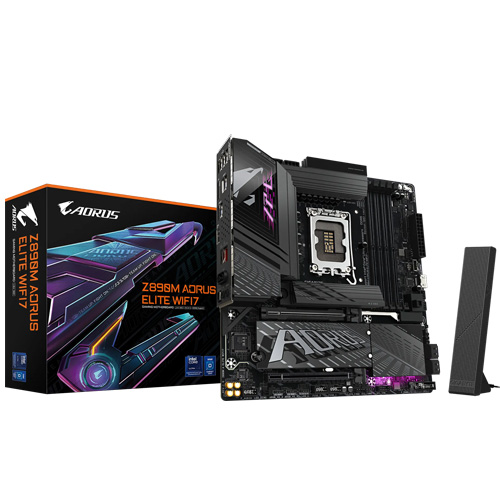

Gigabyte Z890M AORUS ELITE WIFI7
✓ Synced with our store inventory
SRP: ₱19,300
₱16,550
Discounted cash price
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
Upgrade your next PC build with the Gigabyte Z890M AORUS ELITE WIFI7, a high-performance Intel Z890 motherboard built for the latest Intel Core Ultra Series 2 processors. Featuring a powerful 12+1+2 phase VRM design, DDR5 memory support, PCIe 5.0 x16, Wi-Fi 7, USB4 Type-C, and triple M.2 storage slots, this motherboard delivers exceptional speed, stability, and future-ready connectivity for gaming, content creation, and enthusiast PC builds. Designed with advanced cooling, AI-powered BIOS optimization, and premium durability for maximum performance.
| CPU | LGA1851 socket Supports Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Memory | |
| Memory Support | DDR5 5600 MT/s up to 9200 MT/s (OC) |
| DIMM Slots | 4 x DDR5 DIMM |
| Maximum Capacity | 256 GB (64 GB per DIMM) |
| Memory Architecture | Dual Channel |
| ECC Support | ECC Un-buffered DIMM (operates in non-ECC mode) |
| Non-ECC Support | 1Rx8 / 2Rx8 / 1Rx16 Un-buffered DIMM |
| Memory Profiles | XMP Supported |
| CUDIMM Support | Yes |
| Graphics | |
| Integrated Graphics | Intel HD Graphics (CPU dependent) |
| USB4 Video Output | 1 x USB4 Type-C 3840 x 2160 @ 144Hz DisplayPort 2.1 |
| DisplayPort | 1 x DP 3840 x 2160 @ 144Hz DisplayPort 2.1 |
| Front HDMI | 1 x Front HDMI 1920 x 1080 @ 30Hz HDMI 1.4 |
| Multi-Display Support | Up to 3 displays simultaneously |
| Audio | |
| Audio Codec | Realtek Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1-channel |
| S/PDIF Out | Supported |
| Networking | |
| LAN | Realtek 2.5GbE LAN 2.5Gbps / 1Gbps / 100Mbps |
| Wireless | Wi-Fi 7 |
| Wireless Module | MediaTek MT7925 (rev 1.0) or Realtek RTL8922AE (rev 1.1) |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| Wireless Standard | 802.11 a/b/g/n/ac/ax/be |
| Expansion Slots | |
| PCIe Slot 1 | 1 x PCIe 5.0 x16 (CPU) |
| PCIe Slot 2 | 1 x PCIe 4.0 x4 (Chipset) |
| Storage | |
| M.2 CPU Slot 1 | 1 x M.2 PCIe 5.0 x4/x2 (2580/2280) |
| M.2 CPU Slot 2 | 1 x M.2 PCIe 4.0 x4/x2 (2580/2280) |
| M.2 Chipset Slot | 1 x M.2 PCIe 4.0 x4/x2 (25110/22110/2580/2280) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 for NVMe and SATA |
| USB | |
| Rear USB4 | 1 x USB4 Type-C |
| Rear USB 10Gbps | 1 x USB 3.2 Gen2 Type-A |
| Rear USB 5Gbps | 4 x USB 3.2 Gen1 |
| Rear USB 2.0 | 4 x USB 2.0 |
| Front USB-C | 1 x USB Type-C header (USB 3.2 Gen2) |
| Internal USB 5Gbps | 2 ports via header |
| Internal USB 2.0 | 4 ports via headers |
| Internal Connectors | |
| Power Connectors | 1 x 24-pin ATX 2 x 8-pin CPU power |
| Cooling Headers | 1 x CPU Fan 1 x CPU Pump 3 x System Fan 1 x System Pump |
| RGB Headers | 3 x ARGB Gen2 1 x RGB Header |
| Storage Headers | 3 x M.2 4 x SATA |
| USB Headers | 1 x USB-C Gen2 1 x USB 3.2 Gen1 2 x USB 2.0 |
| Other Headers | Front Panel Front Audio TPM Header 2 x Thunderbolt Add-in Card Connectors Power Button Reset Button Q-Flash Plus Button Clear CMOS Jumper |

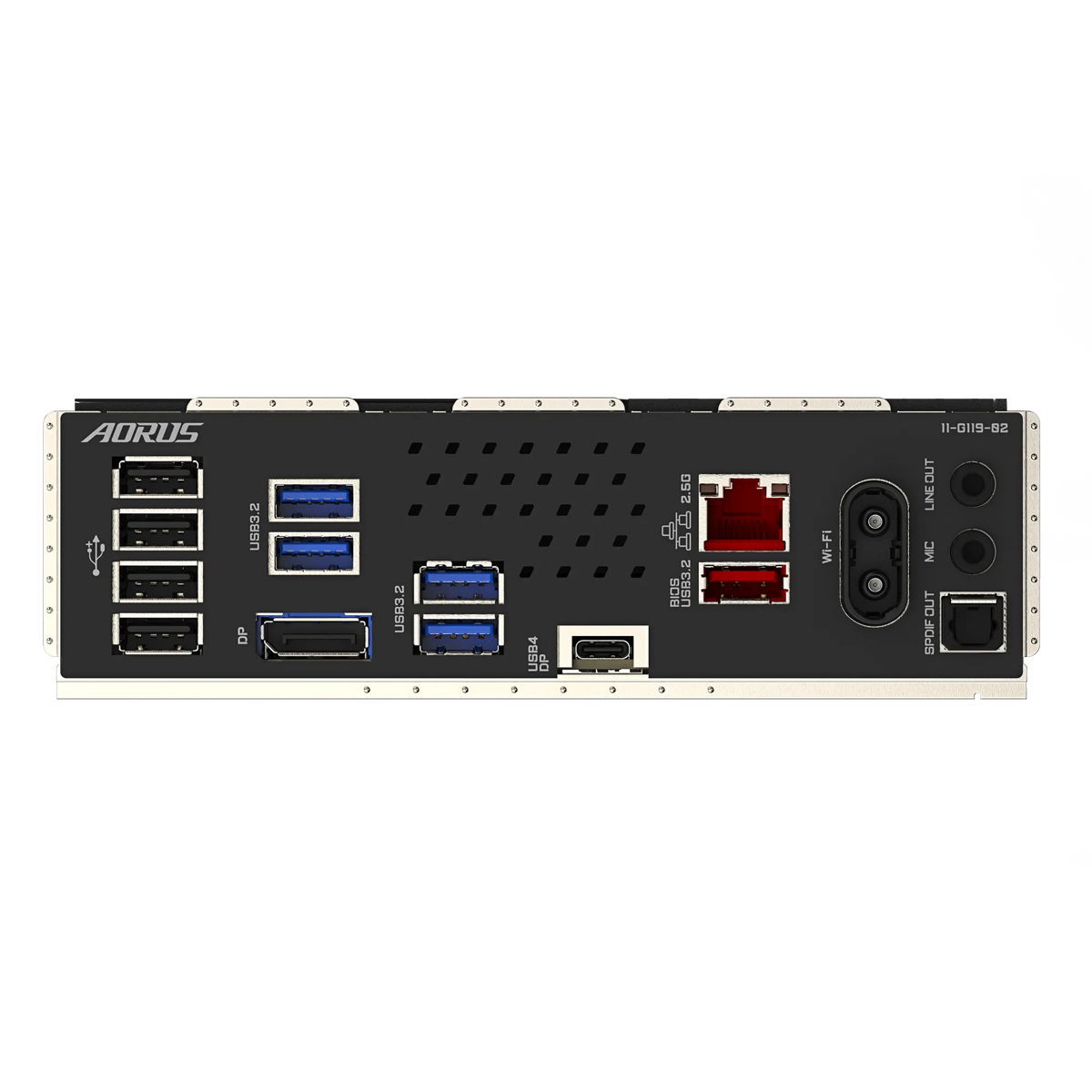

| Back Panel I/O | |
| USB4 Port | 1 x USB4 Type-C (DisplayPort) |
| USB 10Gbps | 1 x USB 3.2 Gen2 Type-A |
| USB 5Gbps | 4 x USB 3.2 Gen1 |
| USB 2.0 | 4 x USB 2.0 |
| DisplayPort | 1 x DisplayPort |
| LAN Port | 1 x RJ-45 |
| Wireless Connectors | 2 x Antenna Connectors |
| Audio Ports | 2 x Audio Jacks |
| Optical Audio | 1 x Optical S/PDIF Out |
| BIOS & Monitoring | |
| BIOS | 256 Mbit Flash AMI UEFI BIOS |
| Hardware Monitoring | Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Detection Fan Fail Warning Fan Speed Control |
| Features | |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus Smart Backup |
| Bundled Software | Norton Internet Security OEM LAN Bandwidth Management Software |
| System | |
| Operating System | Windows 11 64-bit |
| Form Factor | Micro ATX 24.4 cm x 24.4 cm |
