1x HDMI™
Support HDMITM 1.4, maximum resolution of 4K 24Hz*
1x DVI
Support DVI-D, maximum resolution of 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
STORAGE
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
Realtek® 8125 2.5Gbps LAN controller
INTERNAL CONNECTORS
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

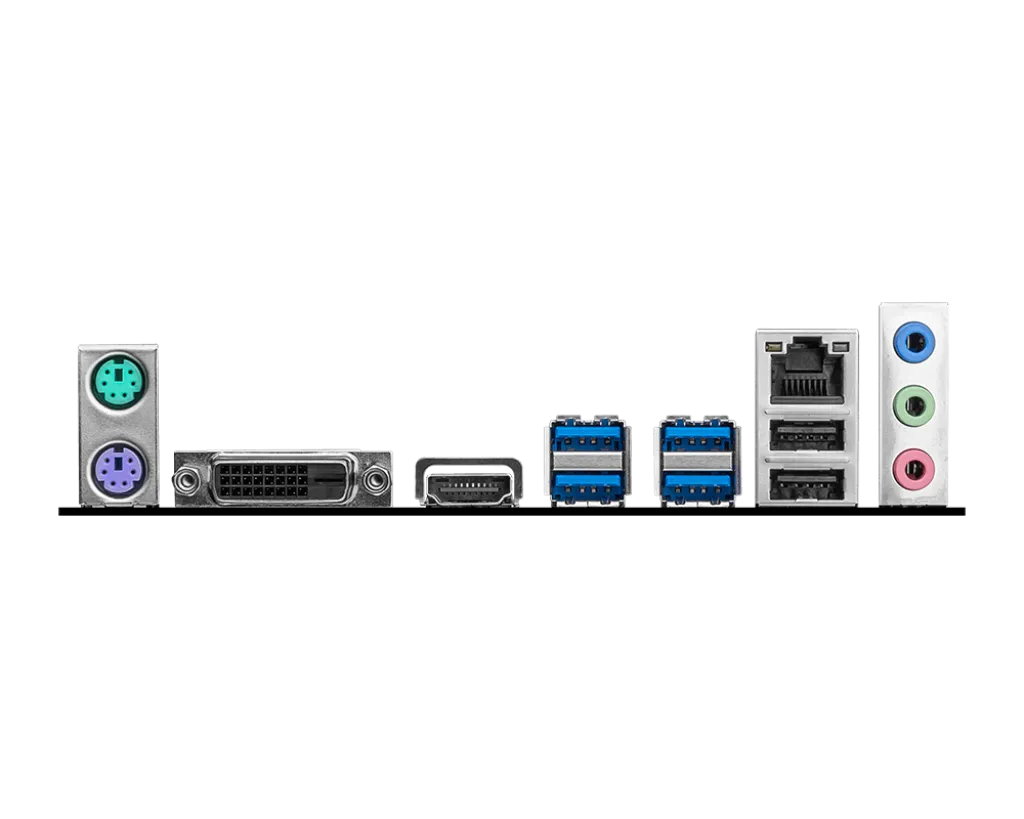

BACK PANEL PORTS
Mouse
DVI-D Port
USB 3.2 Gen1
LAN Port
Keyboard
HDMI™ Port
USB 2.0 Ports
HD Audio Connectors
DIMENSIONS
9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
m-ATX Form Factor
