Motherboard

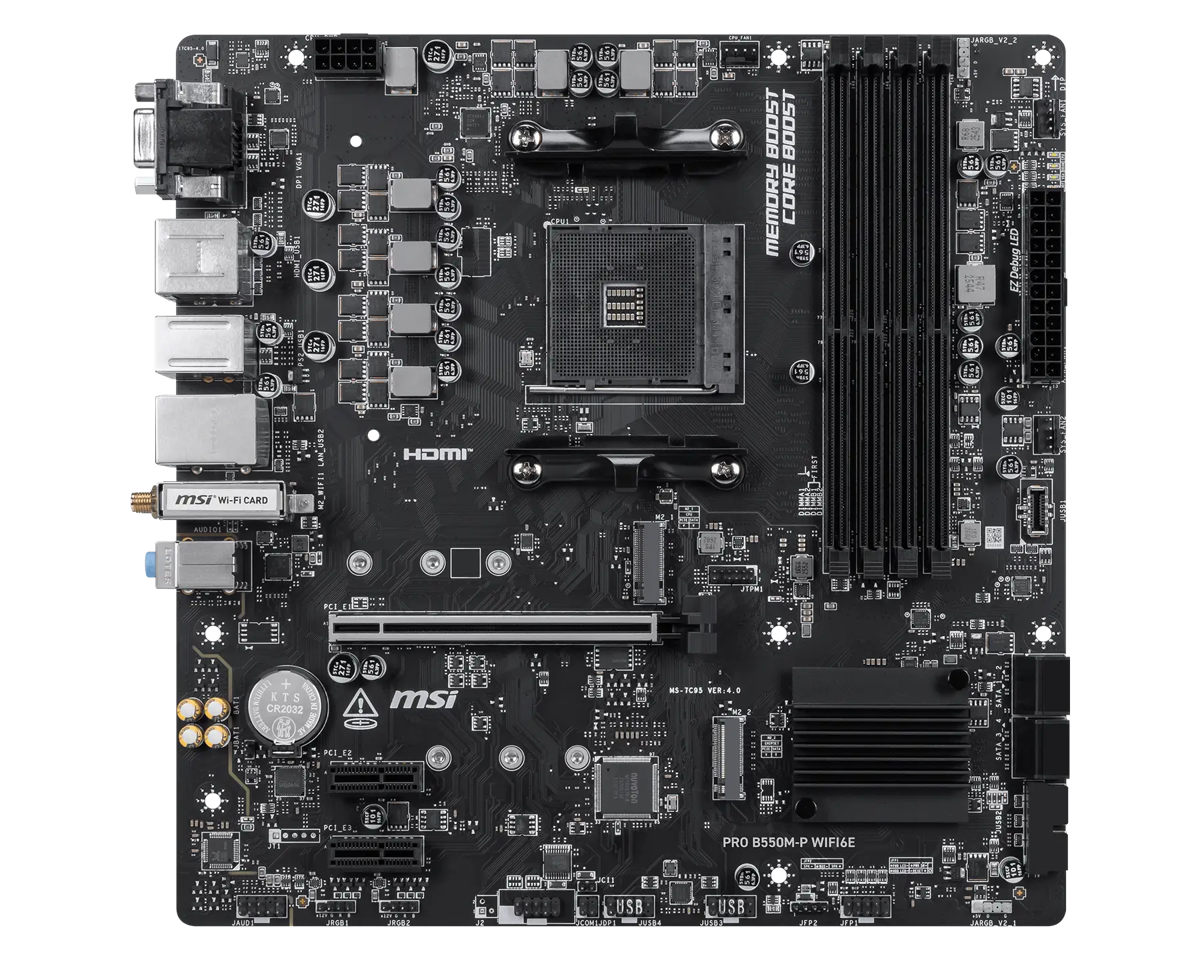

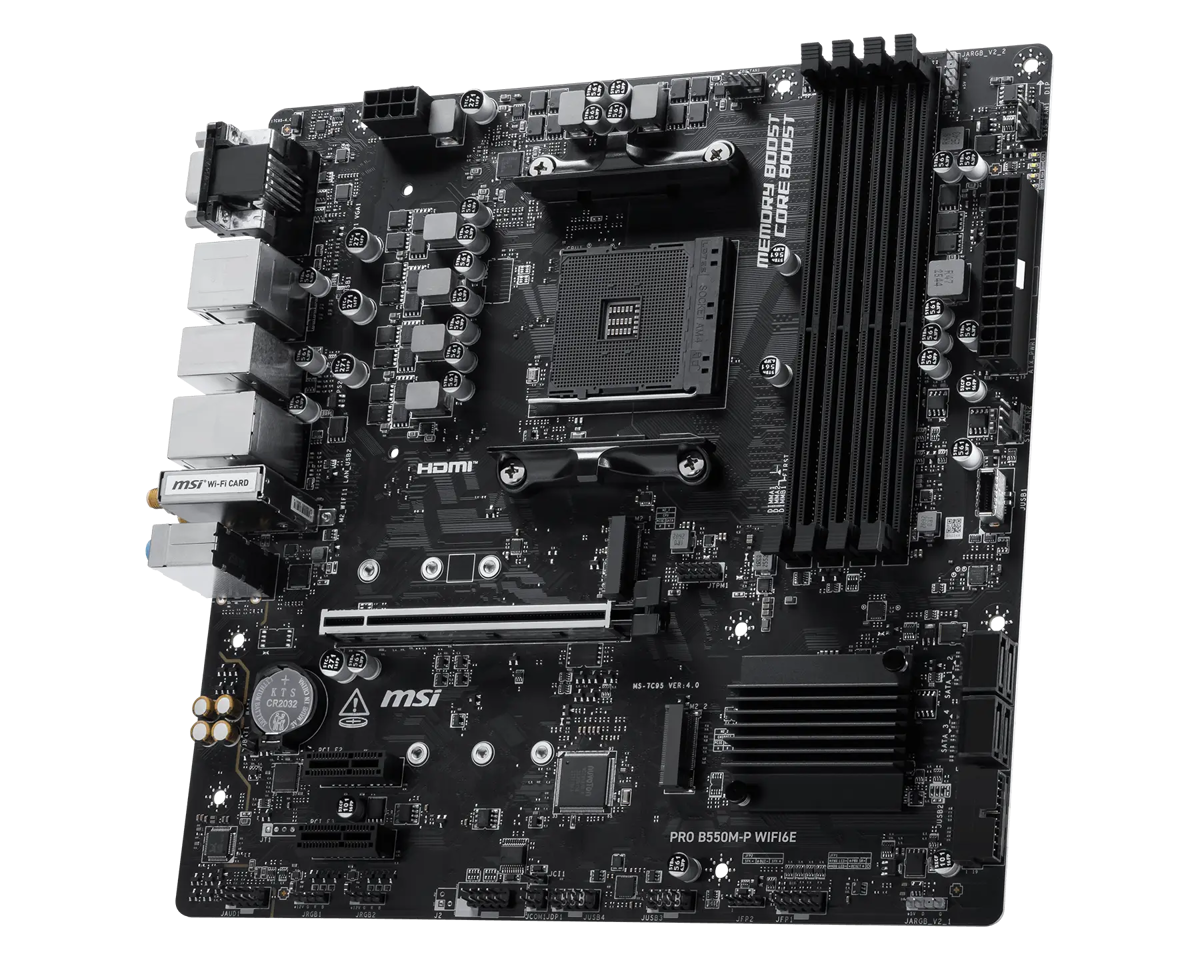

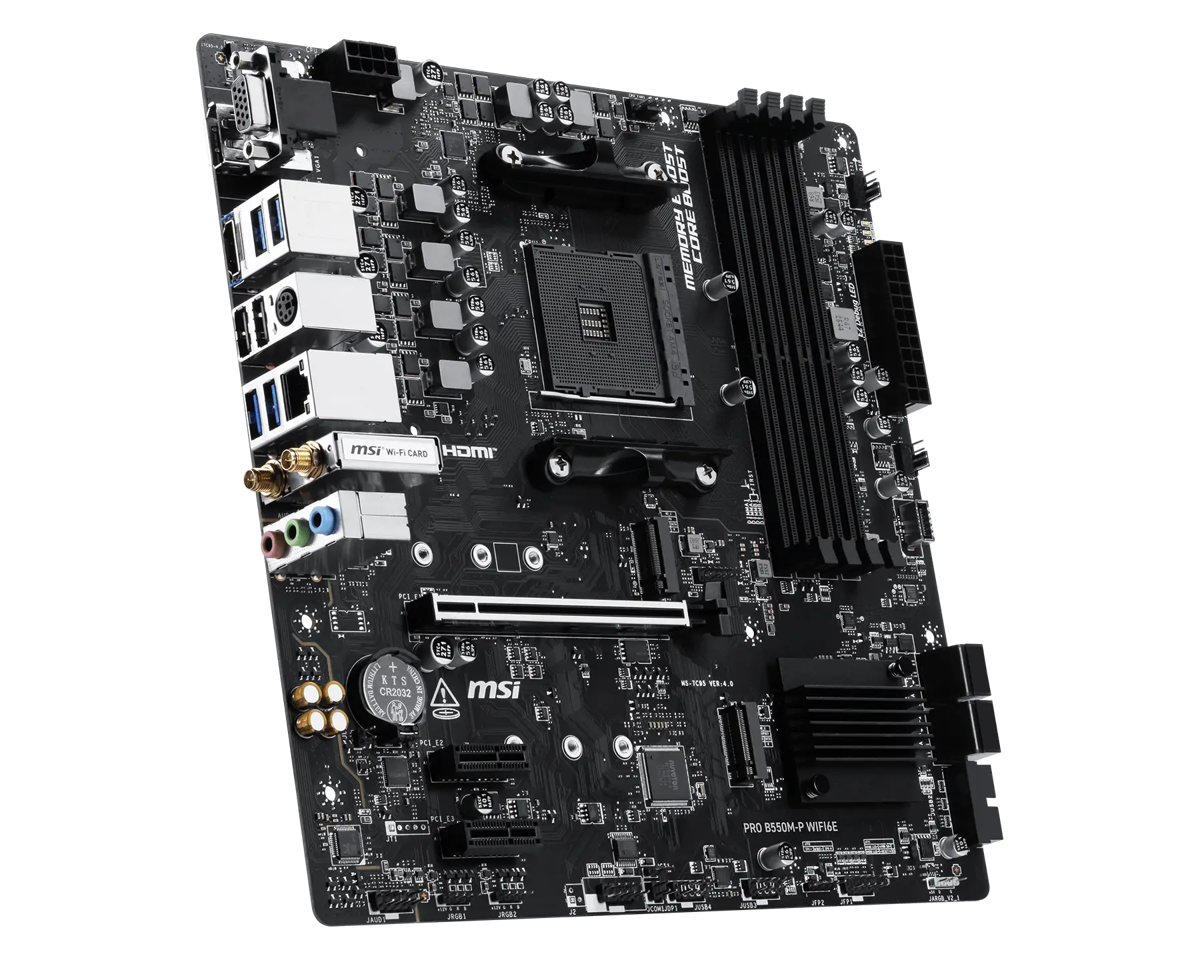

MSI B550M-P WIFI6E
Limited Stock
✓ Synced with our store inventory
SRP: ₱7,600
₱6,450
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| General | |
| Model | PRO B550M-P WIFI6E |
| Chipset | AMD B550 |
| Form Factor | Micro-ATX |
| Dimensions | 243.84 × 243.84 mm |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| CPU | |
| Socket | AM4 |
| CPU Support | AMD Ryzen 5000 Series AMD Ryzen 3000 Series AMD Ryzen 4000 G-Series |
| CPU Exceptions | Not compatible with Ryzen 5 3400G or Ryzen 3 3200G |
| Memory | |
| Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum Memory | 128GB |
| Memory Architecture | Dual Channel |
| Memory Speeds (OC) | DDR4 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400+ MT/s |
| 1DPC 1R | Up to 4400+ MT/s |
| 1DPC 2R | Up to 3733+ MT/s |
| 2DPC 1R | Up to 3866+ MT/s |
| 2DPC 2R | Up to 3466+ MT/s |
| Memory Profile | A-XMP OC Mode |
| Memory Support | Non-ECC, Un-buffered JEDEC Speed |
| Graphics | |
| HDMI | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4K @ 60Hz |
| DisplayPort | 1 × DisplayPort 1.4 |
| DisplayPort Maximum Resolution | 4K @ 60Hz |
| VGA | 1 × VGA |
| VGA Maximum Resolution | 2048 × 1536 @ 50Hz 1920 × 1200 @ 60Hz |
| Graphics Support | Requires processor with integrated graphics |
| Expansion Slots | |
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 2 |
| PCI_E1 | PCIe 4.0 x16 from CPU |
| PCI_E2 | PCIe 3.0 x1 from Chipset |
| PCI_E3 | PCIe 3.0 x1 from Chipset |
| PCIe Support | Specifications depend on installed processor |
| Storage | |
| M.2 Slots | 2 |
| SATA | 4 × SATA 6Gb/s |
| M.2_1 | PCIe 4.0 x4 / SATA Type 2280 / 2260 / 2242 From CPU |
| M.2_2 | PCIe 3.0 x4 Type 2280 / 2260 / 2242 From Chipset |
| SATA RAID | RAID 0 / 1 / 10 |
| NVMe RAID | RAID 0 / 1 |
| Networking | |
| Ethernet | Realtek RTL8111H 1Gbps LAN |
| Wireless | |
| Wi-Fi | Wi-Fi 6E |
| Wireless Module | Pre-installed M.2 Key-E |
| Wi-Fi Configuration | 1T1R |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ax |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| MU-MIMO | MU-MIMO RX |
| Bluetooth | Bluetooth 5.3 |
| USB | |
| Rear USB 2.0 | 2 × Type-A |
| Rear USB 5Gbps | 4 × Type-A |
| Front USB 2.0 | 4 Ports |
| Front USB 5Gbps | 2 × Type-A 1 × Type-C |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |

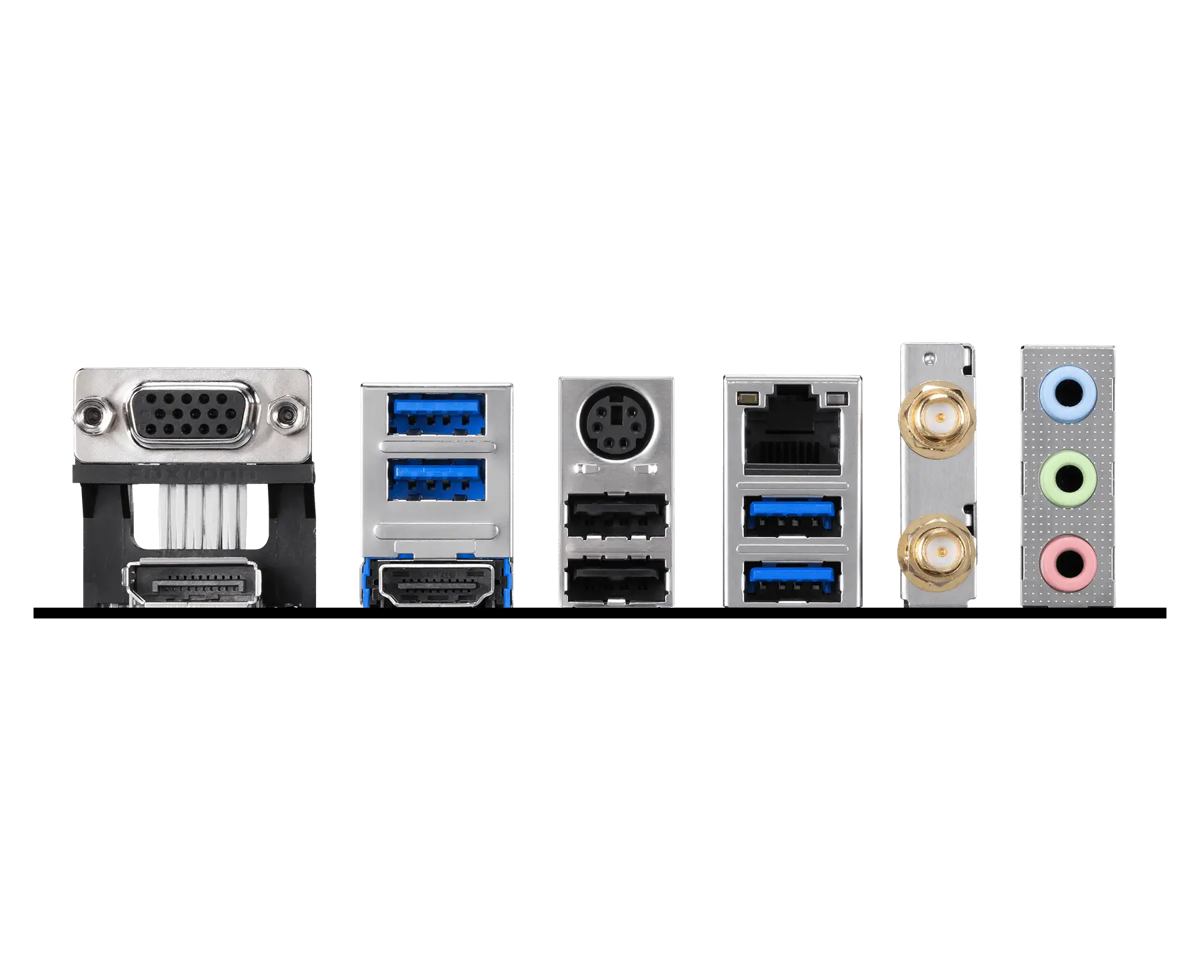

| Back Panel I/O | |
| Display Outputs | 1 × HDMI 2.1 1 × DisplayPort 1.4 1 × VGA |
| USB | 4 × USB 5Gbps Type-A 2 × USB 2.0 Type-A |
| Network | 1 × RJ-45 LAN |
| Wireless | Wi-Fi / Bluetooth Antenna Connectors |
| Audio | Audio Connectors |
| Legacy | 1 × PS/2 Keyboard / Mouse |
| Internal Connectors | |
| Main Power | 1 × ATX Power Connector |
| CPU Power | 1 × CPU Power Connector |
| CPU Fan | 1 |
| System Fans | 2 |
| Front Panel Headers | 2 |
| Chassis Intrusion | 1 |
| Front Audio | 1 |
| COM Port | 1 |
| Addressable RGB | 2 × Addressable V2 RGB LED Connectors |
| RGB | 2 × RGB LED Connectors |
| TPM | 1 × TPM 2.0 Header |
| USB 2.0 | 4 Ports |
| USB 5Gbps | 2 × Type-A 1 × Type-C |
| LED Features | |
| Debug LEDs | 4 × EZ Debug LED |
