4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 up to 7600+(OC)
Onboard Graphics Ports
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Slot
1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
2x M.2 PCIe 4.0
4x SATA 6G
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN
Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH

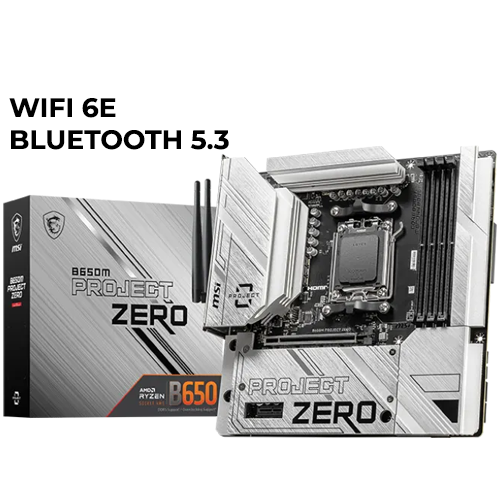

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports up to 32-Bit/384 kHz playback on front panel
Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan

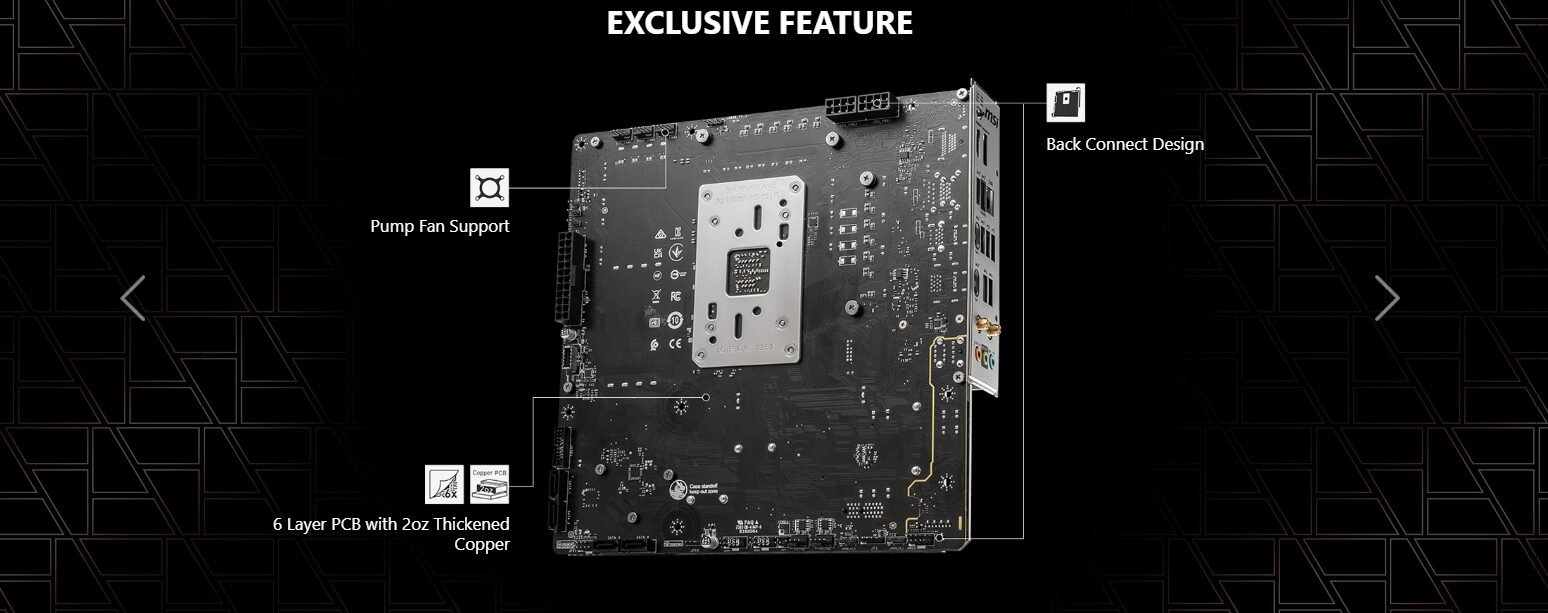

1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

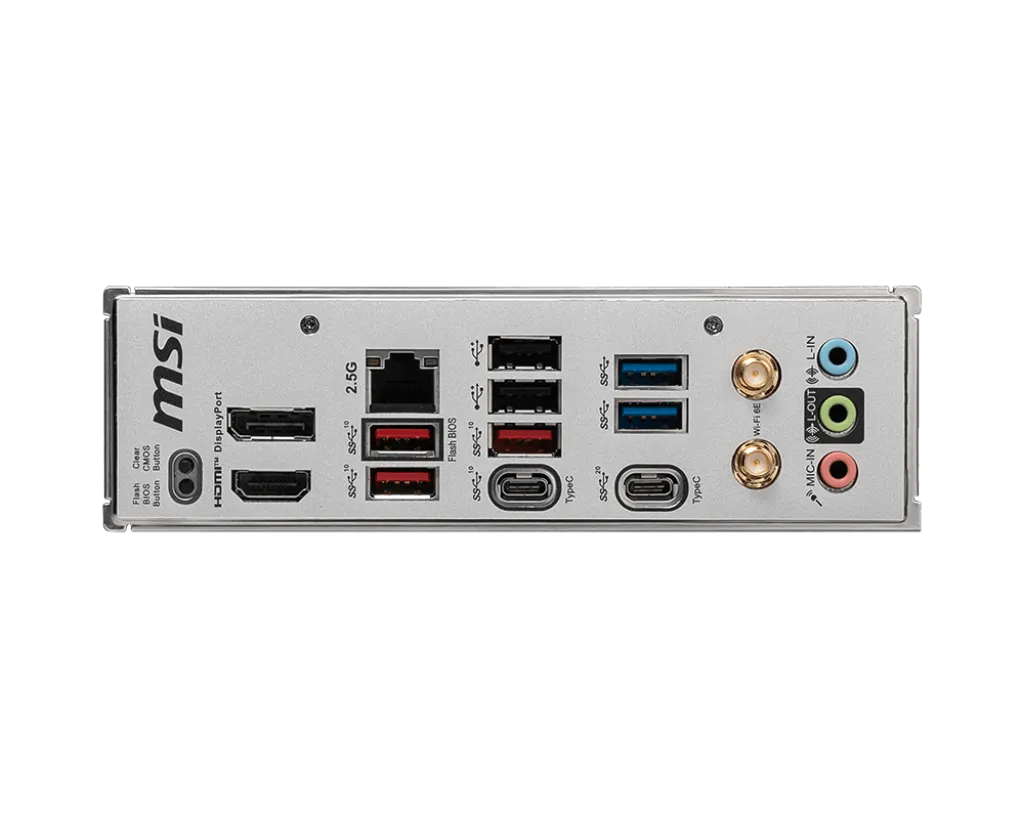

BACK PANEL PORTS
DisplayPort
2.5G LAN
USB 2.0
USB 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
Clear CMOS Button
HDMI™
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 20Gbps (Type-C)
