Motherboard

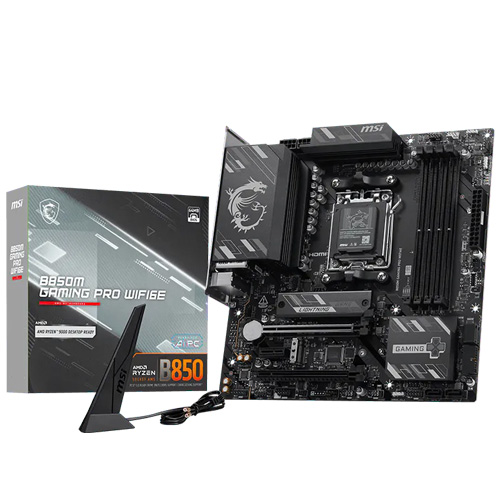

MSI B850M GAMING PRO WIFI6E (HDMI/DP)
Limited Stock
✓ Synced with our store inventory
✨ New Arrival
SRP: ₱13,300
₱11,400
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| General | |
| Chipset | AMD B850 |
| Form Factor | Micro-ATX |
| Dimensions | 243.84 × 243.84 mm |
| Operating System | Windows 11 64-bit |
| CPU | |
| Socket | AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Memory | |
| Memory Type | DDR5 UDIMM |
| DIMM Slots | 4 |
| Maximum Memory | 256GB |
| Memory Architecture | Dual Channel |
| Memory Speeds (OC) | DDR5 8200 - 5600 MT/s |
| Memory Speeds (JEDEC) | DDR5 5600 - 4800 MT/s |
| Ryzen 9000 - 1DPC 1R | Up to 8200+ MT/s |
| Ryzen 9000 - 1DPC 2R | Up to 6400+ MT/s |
| Ryzen 9000 - 2DPC 1R | Up to 6400+ MT/s |
| Ryzen 9000 - 2DPC 2R | Up to 6000+ MT/s |
| Memory Profile | AMD EXPO |
| Memory Support | Non-ECC, Un-buffered |
| CUDIMM Support | Yes, Clock Driver bypass mode only |
| Graphics | |
| HDMI | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4K @ 60Hz |
| DisplayPort | 1 × DisplayPort 1.4 |
| DisplayPort Maximum Resolution | 4K @ 60Hz |
| Graphics Support | Requires processor with integrated graphics |
| Expansion Slots | |
| PCIe x16 Slots | 2 |
| PCIe x1 Slots | 1 |
| PCI_E1 | PCIe 4.0 x16 from CPU |
| PCI_E2 | PCIe 3.0 x1 from Chipset |
| PCI_E3 | PCIe 4.0 x4 from Chipset |
| Ryzen 9000 / 7000 PCI_E1 | PCIe 4.0 x16 |
| Ryzen 8700 / 8600 / 8400 PCI_E1 | PCIe 4.0 x8 |
| Ryzen 8500 / 8300 PCI_E1 | PCIe 4.0 x4 |
| Storage | |
| M.2 Slots | 2 |
| SATA | 4 × SATA 6Gb/s |
| M.2_1 | PCIe 5.0 x4, Type 2280/2260 |
| M.2_2 | PCIe 4.0 x4, Type 2280/2260 |
| Ryzen 9000 / 7000 M.2_1 | PCIe 5.0 x4 |
| Ryzen 8000 M.2_1 | PCIe 4.0 x4 |
| Ryzen 9000 / 8700 / 8600 / 8400 / 7000 M.2_2 | PCIe 4.0 x4 |
| Ryzen 8500 / 8300 M.2_2 | Unavailable |
| SATA RAID | RAID 0 / 1 / 10 |
| NVMe RAID | RAID 0 / 1 |
| Networking | |
| Ethernet | Realtek 8125D 2.5G LAN |
| Wi-Fi | Wi-Fi 6E |
| Wi-Fi Standard | 802.11 a/b/g/n/ac/ax |
| Wi-Fi Bands | 2.4GHz / 5GHz / 6GHz |
| Wi-Fi Bandwidth | 160MHz |
| Maximum Wi-Fi Speed | Up to 2.4Gbps |
| MU-MIMO | Yes |
| Bluetooth | Bluetooth 5.3 |
| USB | |
| Rear USB 5Gbps | 4 × Type-A |
| Rear USB 10Gbps | 3 × Type-A / 1 × Type-C |
| Front USB 2.0 | 4 ports |
| Front USB 5Gbps | 2 × Type-A |
| Front USB 10Gbps | 1 × Type-C |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| Internal Connectors | |
| Main Power | 1 × ATX Power Connector |
| CPU Power | 2 × CPU Power Connectors |
| CPU Fan | 1 |
| Pump / System Fan | 1 × Combo Fan |
| System Fans | 3 |
| EZ Conn Header | 1 |
| Front Panel Headers | 2 |
| Chassis Intrusion | 1 |
| Front Audio | 1 |
| COM Port | 1 |
| Tuning Controller | 1 |
| Addressable RGB | 3 × Addressable V2 RGB LED Connectors |
| RGB | 1 × RGB LED Connector |
| TPM | 1 × TPM 2.0 Header |
| USB 2.0 | 4 ports |
| USB 5Gbps | 2 × Type-A |
| USB 10Gbps | 1 × Type-C |

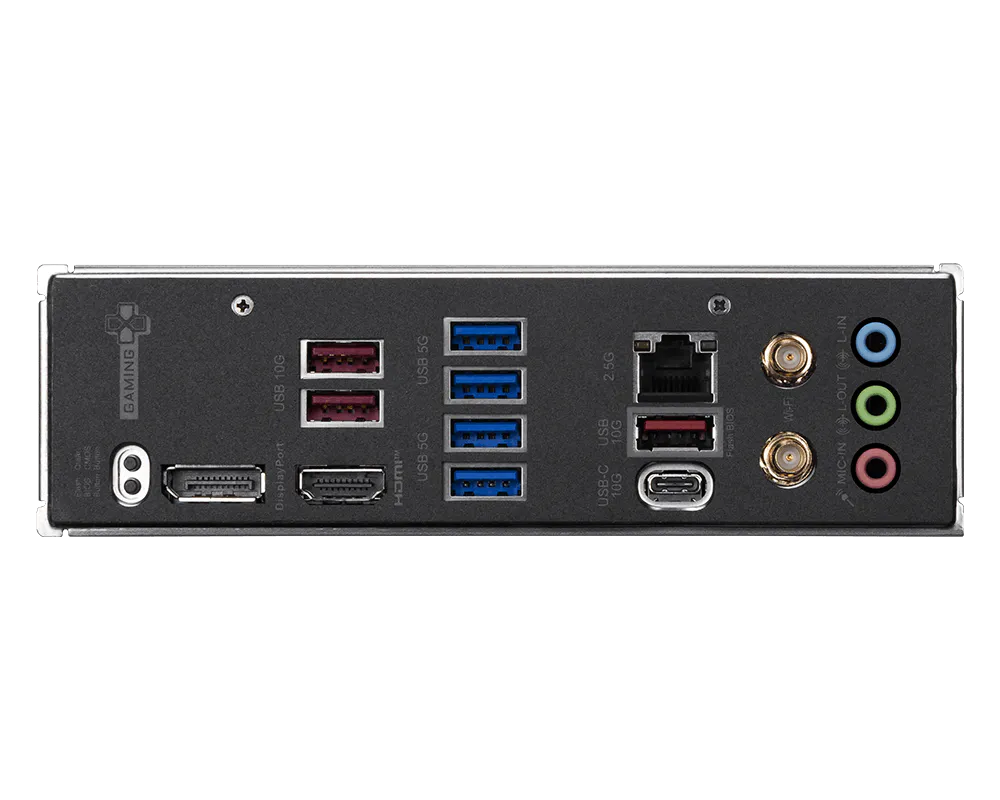

| Back Panel Ports | |
| Clear CMOS Button | 1 |
| USB 10Gbps (Type-A) | 2 |
| USB 5Gbps (Type-A) | 4 |
| USB 10Gbps (Type-A) | 1 |
| USB 10Gbps (Type-C) | 1 |
| Flash BIOS Button | 1 |
| LED Features | |
| Debug LEDs | 4 × EZ Debug LED |
| Memory Detection | 1 × EZ Memory Detection LED |
