Motherboard

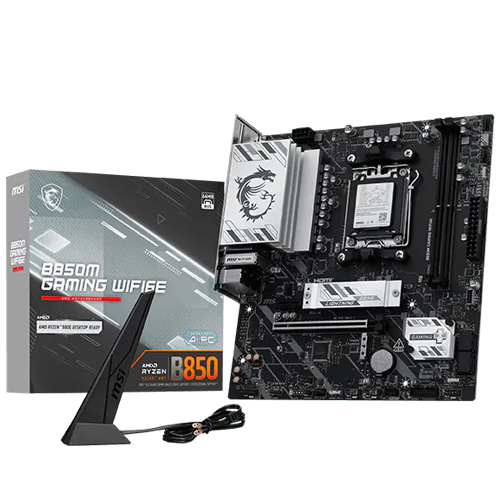

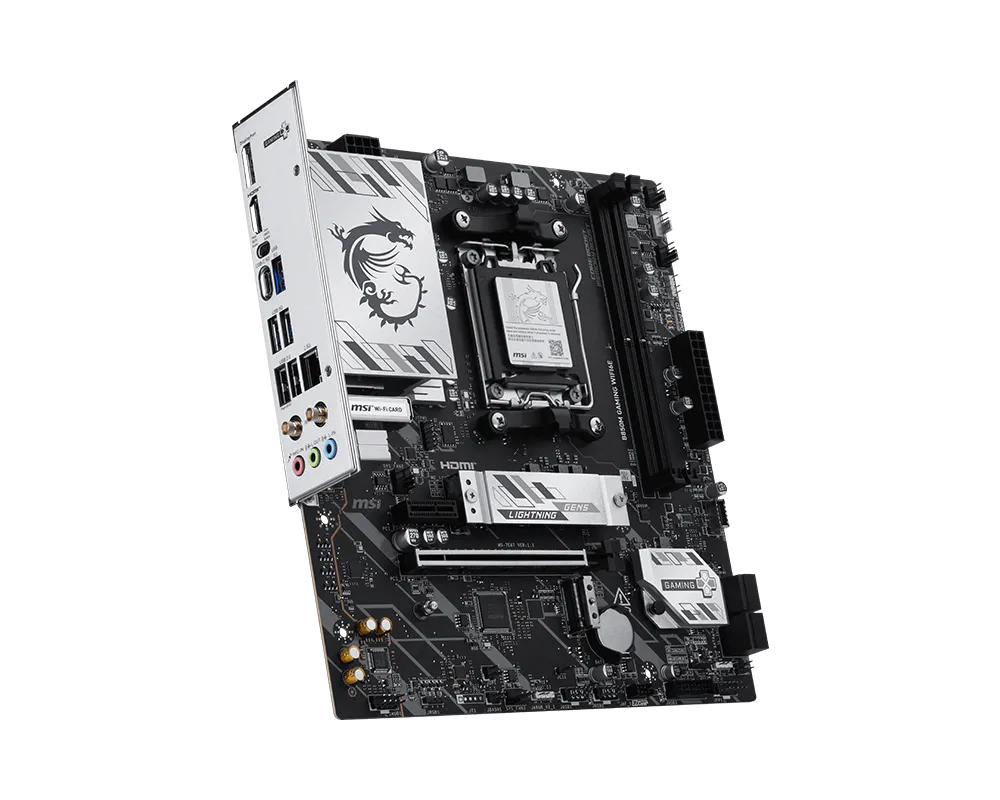

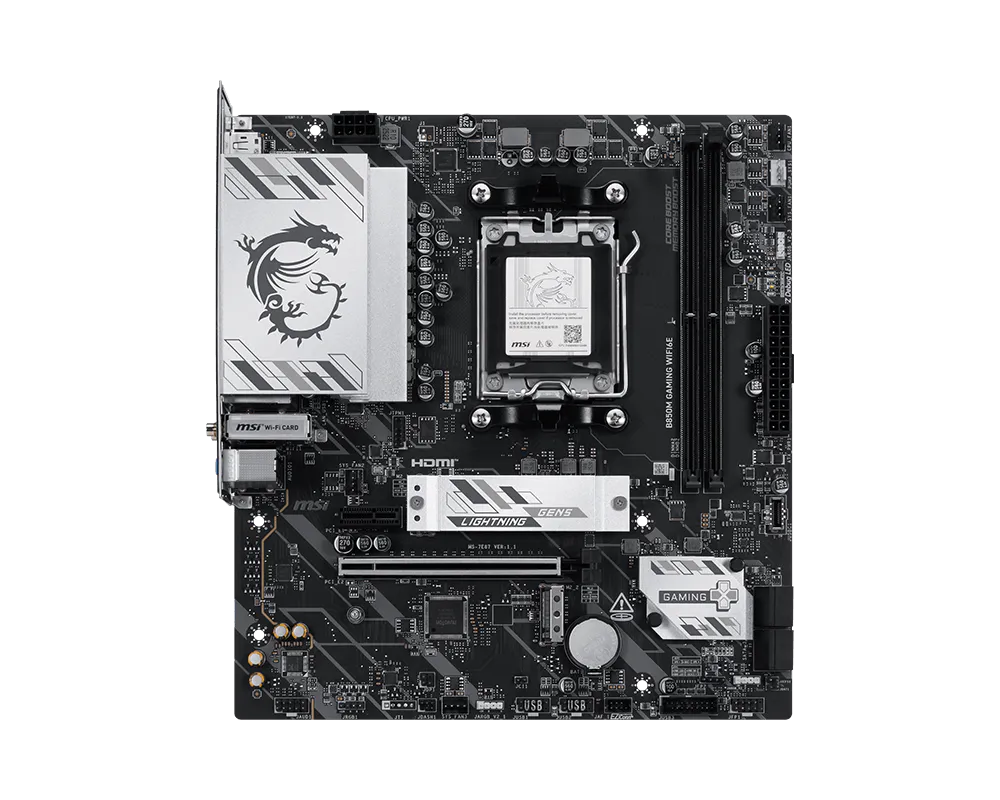

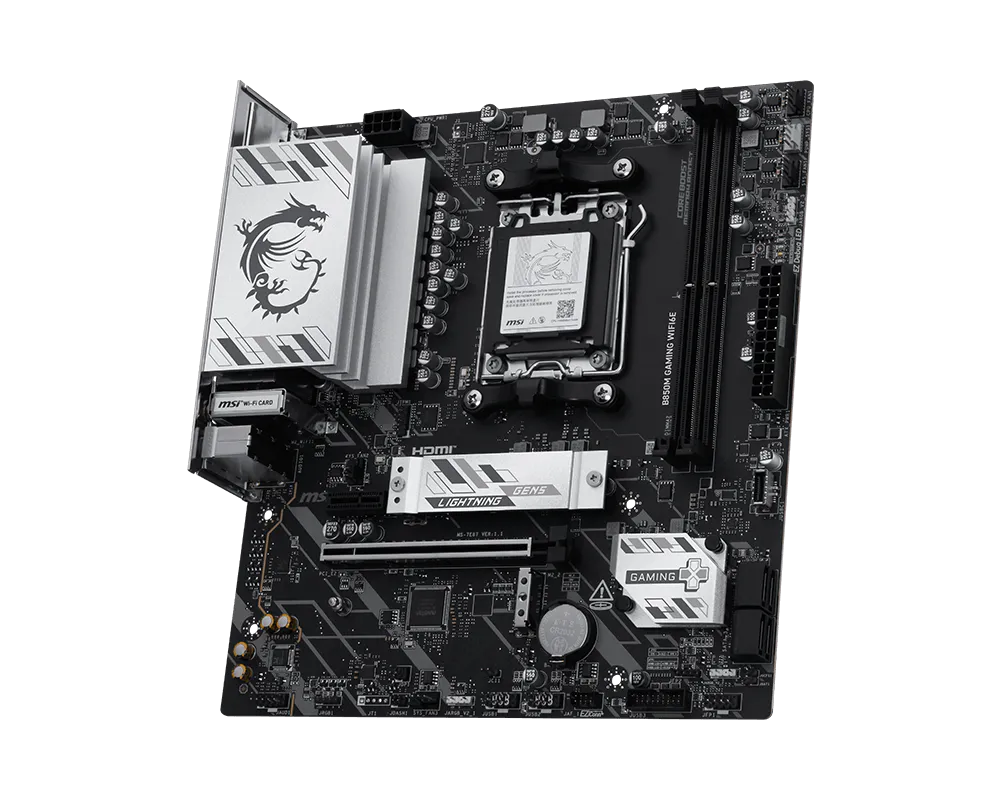

MSI B850M GAMING WIFI6E (AM5)
Incoming Stock
✓ Synced with our store inventory
SRP: ₱10,500
₱8,950
Discounted cash price
1
✨ 100% Brand New
🛡️ Secure payments via GCash or Bank Transfer
🛵 Same day delivery within Lucena and nearby areas
📦 Shipping available via J&T Express
🏬 In-store pickup available
About this item
| General | |
| Chipset | AMD B850 |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series |
| Form Factor | Micro-ATX |
| Dimensions | 226 × 243.84 mm |
| Memory | |
| Memory Support | 2 x DDR5 UDIMM |
| Maximum Capacity | 128GB |
| Memory Speeds | DDR5-8200+ (OC) to 5600 MT/s DDR5-5600 to 4800 MT/s (JEDEC) |
| Memory Architecture | Dual Channel |
| Memory Support Features | AMD EXPO™ Memory Overclocking AMD POR & JEDEC Speeds Non-ECC Unbuffered CUDIMM (Clock Driver Bypass Mode) |
| Graphics | |
| Integrated Graphics Support | Yes (CPU Dependent) |
| Display Outputs | 1 x HDMI 2.1 1 x DisplayPort 1.4 |
| Maximum Resolution | 3840 × 2160 @ 60Hz |
| Maximum Displays | 2 |
| Expansion Slots | |
| PCIe x16 | 1 x PCIe 4.0 x16 (CPU) x16 (Ryzen™ 9000/7000) x8 (Ryzen™ 8700/8600/8400) x4 (Ryzen™ 8500/8300) |
| PCIe x1 | 1 x PCIe 3.0 x1 (Chipset) |
| Storage | |
| M.2 Slots | 1 x M.2 PCIe 5.0 x4 (2280) 1 x M.2 PCIe 4.0 x4 (2280) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 10 (SATA) RAID 0 / 1 (NVMe) |
| Network | |
| LAN | Realtek® 8125D 2.5 Gigabit Ethernet |
| Wireless | Wi-Fi 6E (Pre-installed M.2 Key-E Module) |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ax |
| Wi-Fi Features | MU-MIMO TX/RX 2.4 / 5 / 6 GHz (160 MHz) Up to 2.4 Gbps |
| Bluetooth | Bluetooth® 5.3 |
| Audio | |
| Audio Codec | Realtek® ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| USB | |
| Rear USB | 1 x USB 5Gbps Type-C 3 x USB 5Gbps Type-A 2 x USB 2.0 |
| Front USB | 1 x USB 10Gbps Type-C 2 x USB 5Gbps Type-A 4 x USB 2.0 |

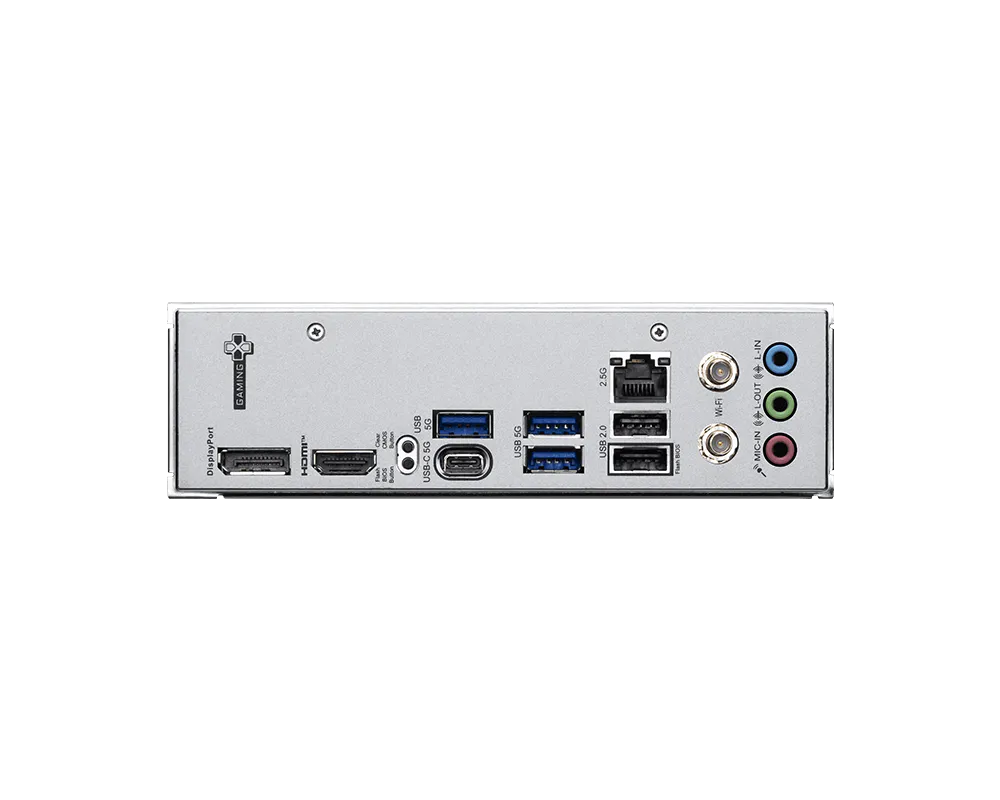

| Rear I/O | |
| Video Outputs | 1 x DisplayPort 1.4 1 x HDMI 2.1 |
| USB | 1 x USB 5Gbps Type-C 3 x USB 5Gbps Type-A 2 x USB 2.0 |
| Network | 1 x 2.5G RJ-45 |
| Wireless | Wi-Fi Antenna Connectors |
| Audio | HD Audio Connectors |
| Buttons | Clear CMOS Flash BIOS |
| Internal Connectors | |
| Power | 1 x 24-pin ATX 1 x 8-pin CPU |
| Cooling | 1 x CPU Fan Header 1 x Pump/System Fan Header 3 x System Fan Headers |
| Storage | 2 x M.2 4 x SATA 6Gb/s |
| USB Headers | 1 x USB 10Gbps Type-C 2 x USB 5Gbps Type-A 4 x USB 2.0 |
| Lighting | 3 x Addressable RGB Gen2 Headers 1 x RGB LED Header |
| Other Headers | EZ Conn Header 2 x Front Panel Front Audio Chassis Intrusion JDASH Connector TPM 2.0 Header |
| Features | |
| Debug LEDs | 4 x EZ Debug LED 1 x EZ Memory Detection LED |
| Operating System | |
| OS Support | Windows® 11 64-bit |
