| Brand | MSI |
|---|---|
| PSU Form Factor | ATX |
| Efficiency Rating | 80 PLUS Bronze (up to 85%) |
| Modular | No |
| Fan Size | 120mm |
| Fan Bearing | Sleeve Bearing |
| Dimensions (DxWxH) | 140 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100~240 VAC |
| Power Watt | 650W |
| Protection | OCP / OVP / OPP / OTP / SCP |

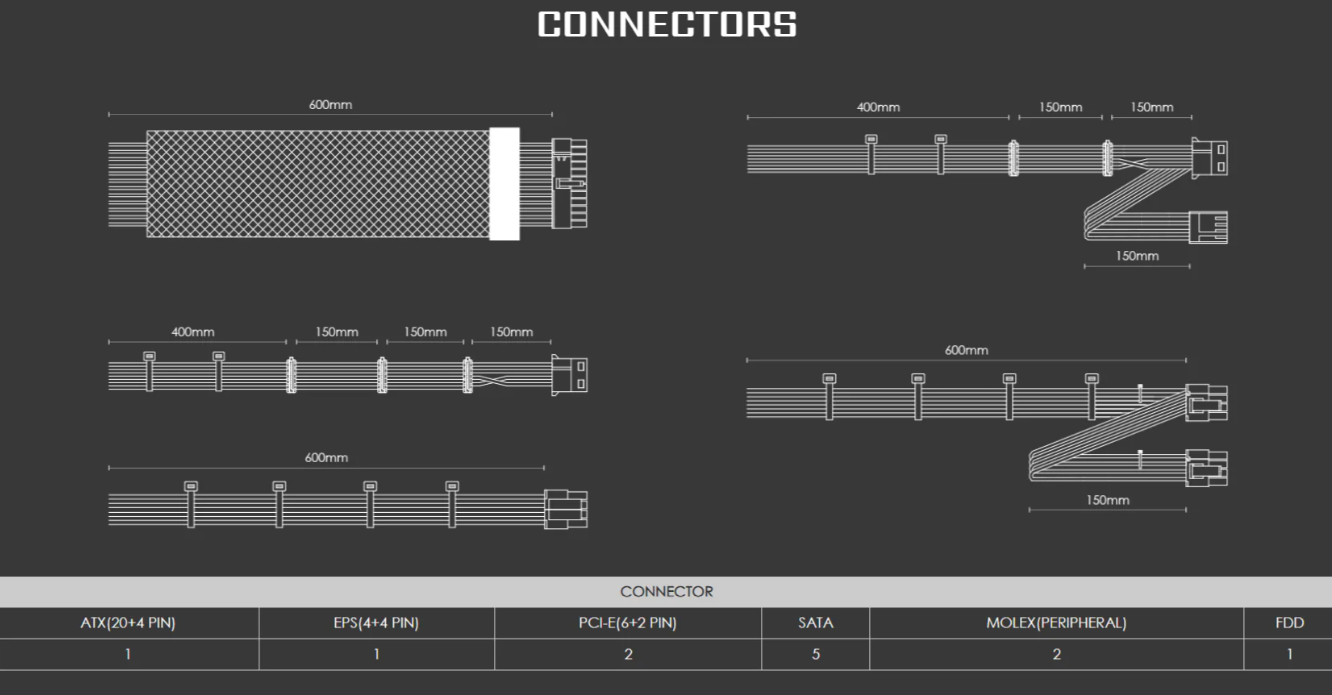

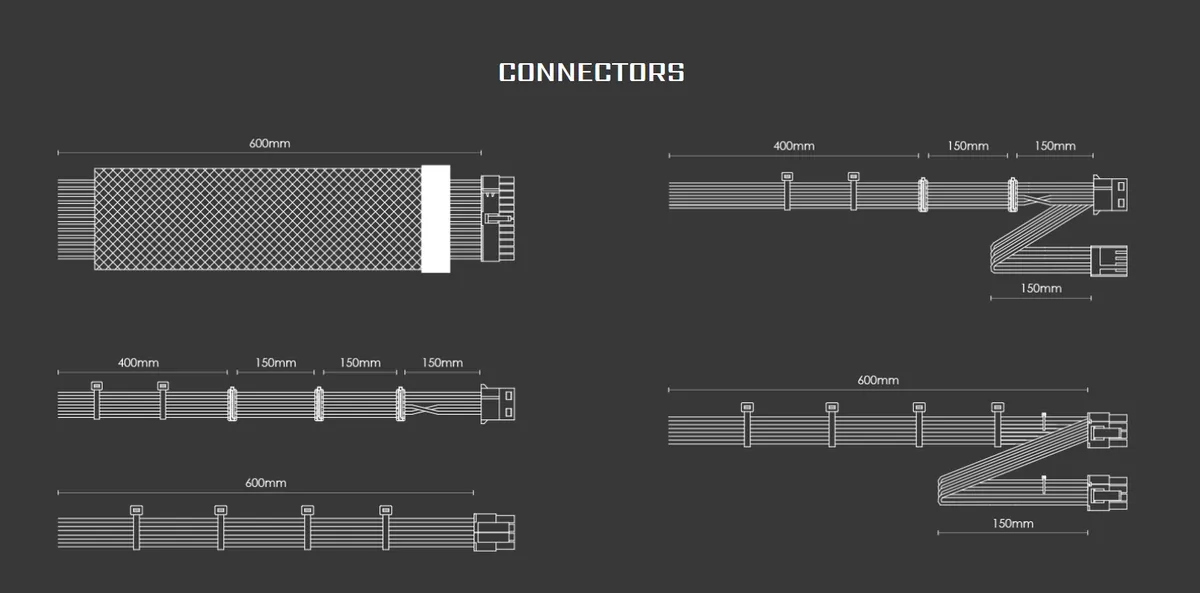

| Connectors | ATX (24 pin) x 1 EPS (4+4 pin) x 1 PCI-E (6+2 pin) x 2 (1 cable) SATA (15 pin) x 5 (2 cables) MOLEX (4PIN) x 2 (2 cables) FDD (4 pin) x 1 |
