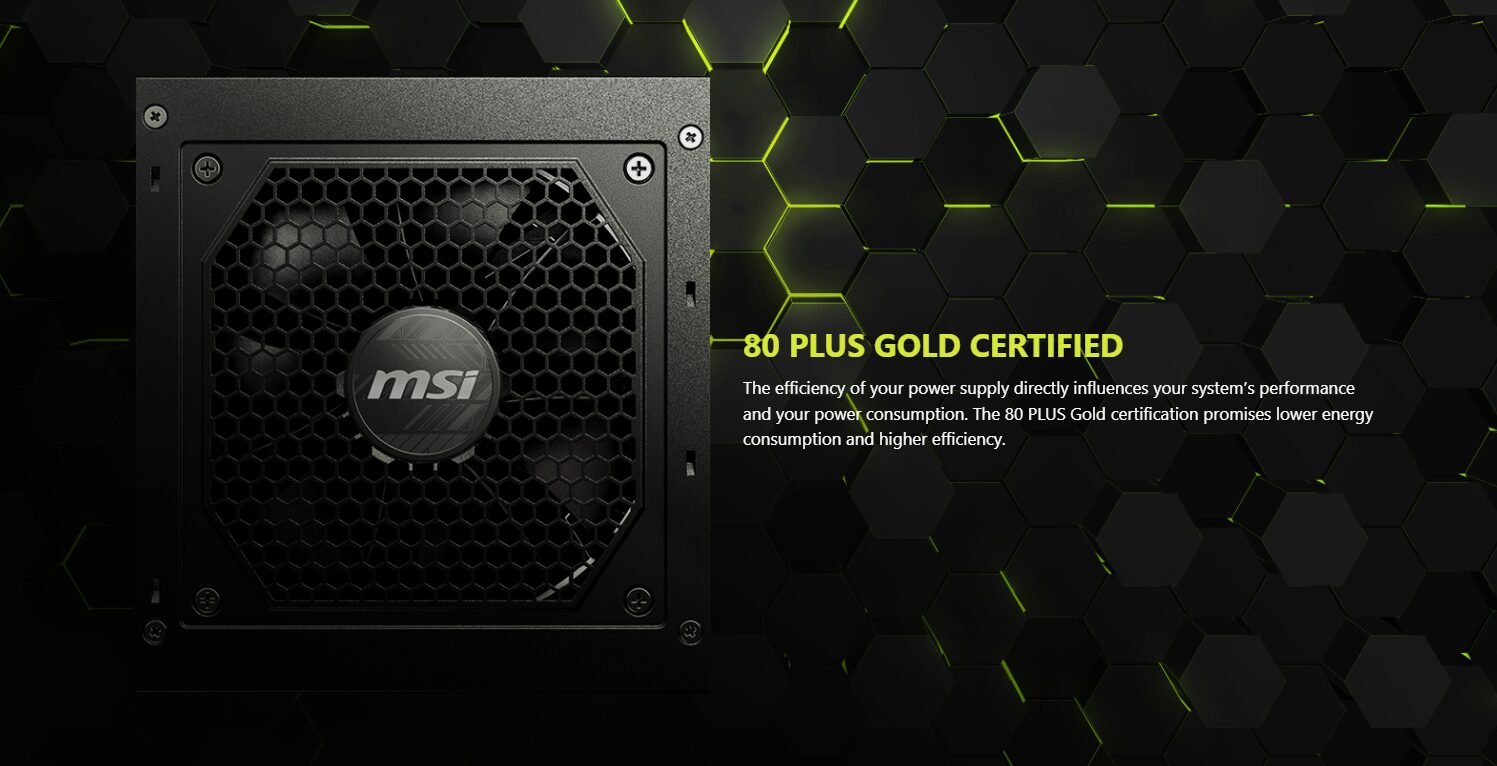

Efficiency Rating | 80 PLUS Gold (up to 90%) |

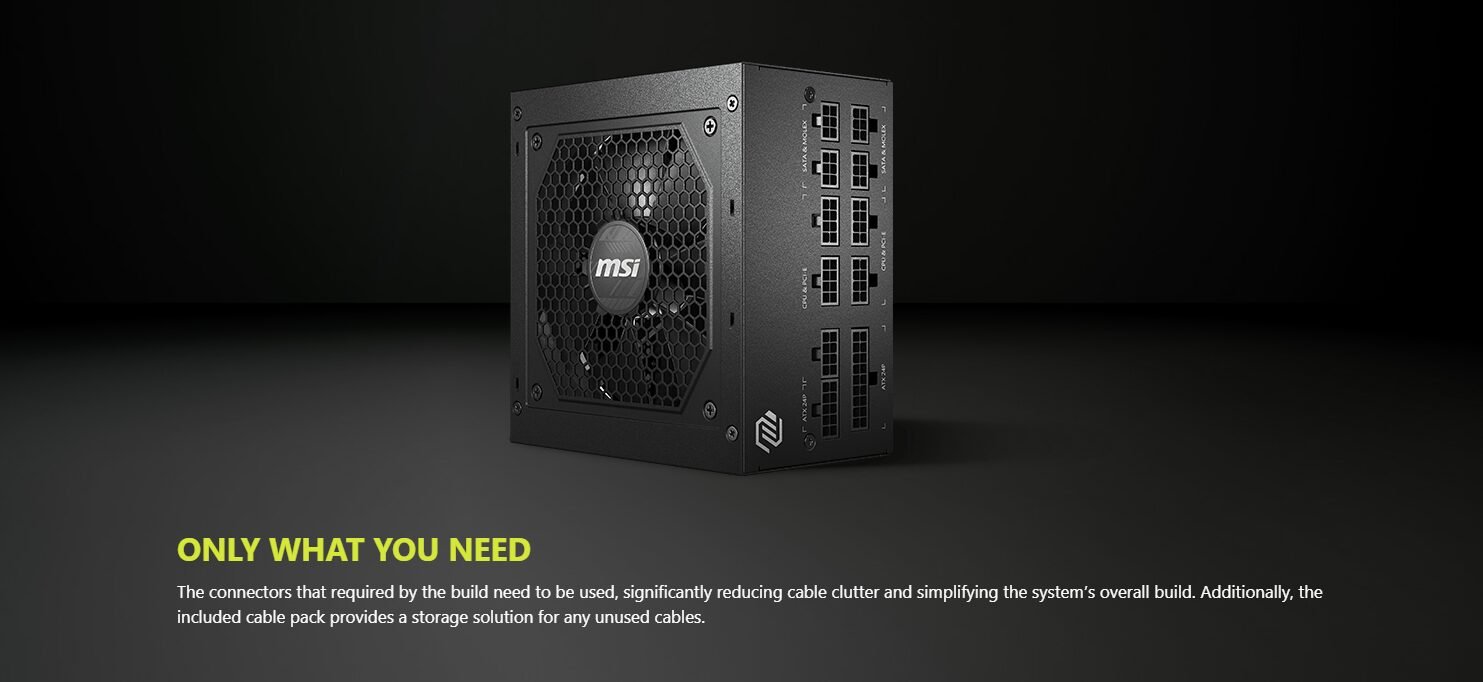

Modular | Yes (full modular) |

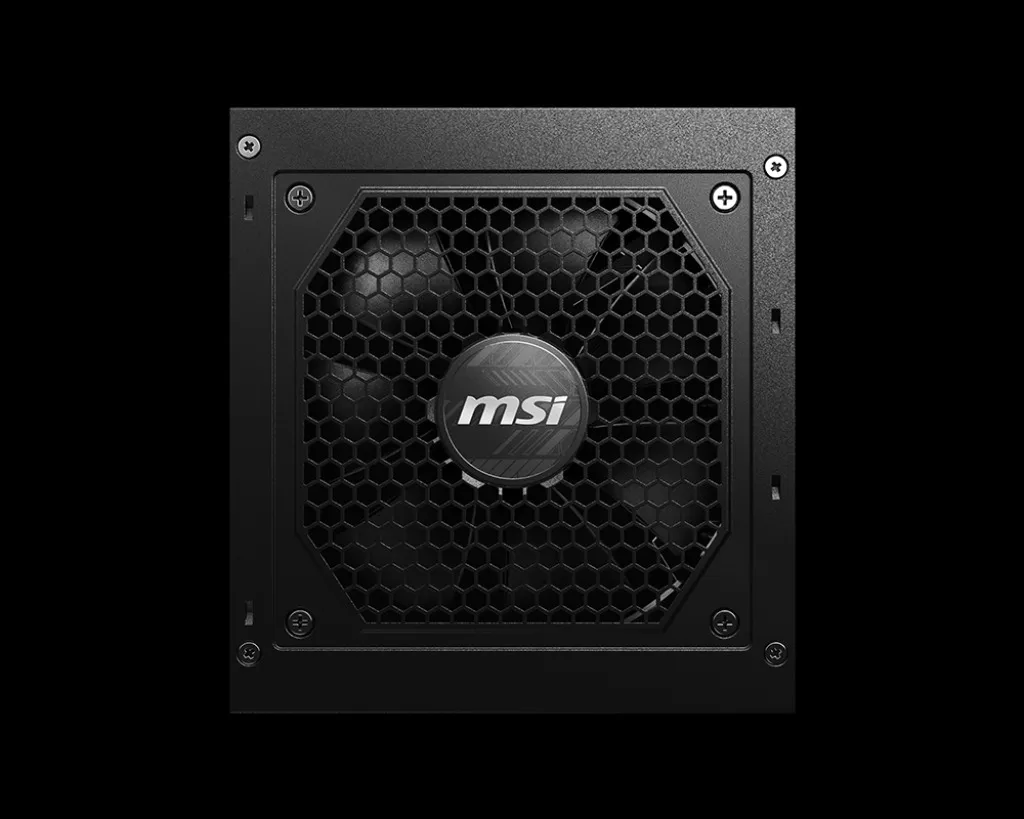

Fan Size | 120 mm |
Fan Bearing | Fluid Dynamic Bearing |
Dimensions (DxWxH) | 140 x 150 x 86 mm |
PFC Type | Active PFC |
Input Voltage Range | 100~240 VAC |
Power Watt | 650W |
Protection | OCP / OVP / OPP / OTP / SCP / UVP |

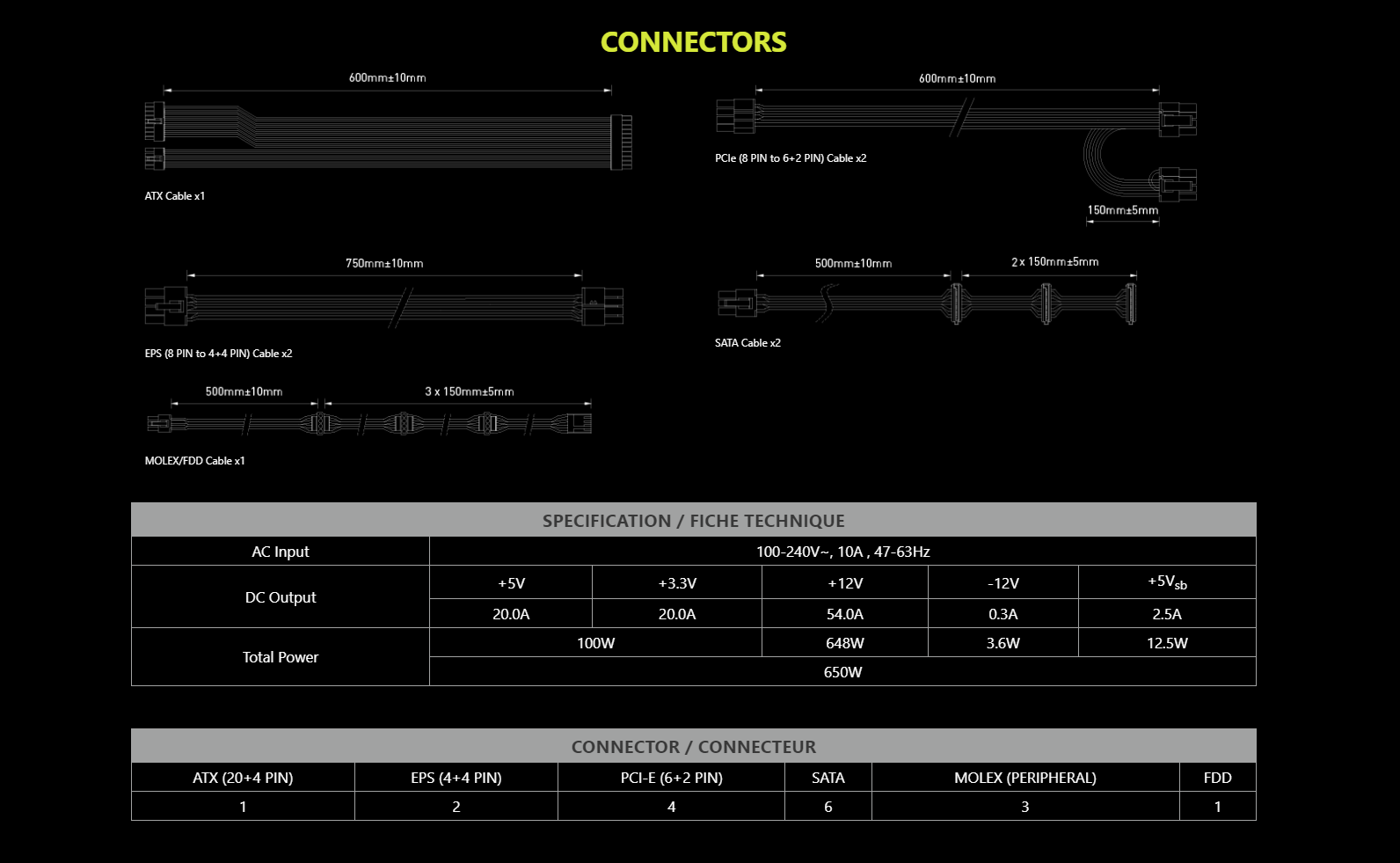

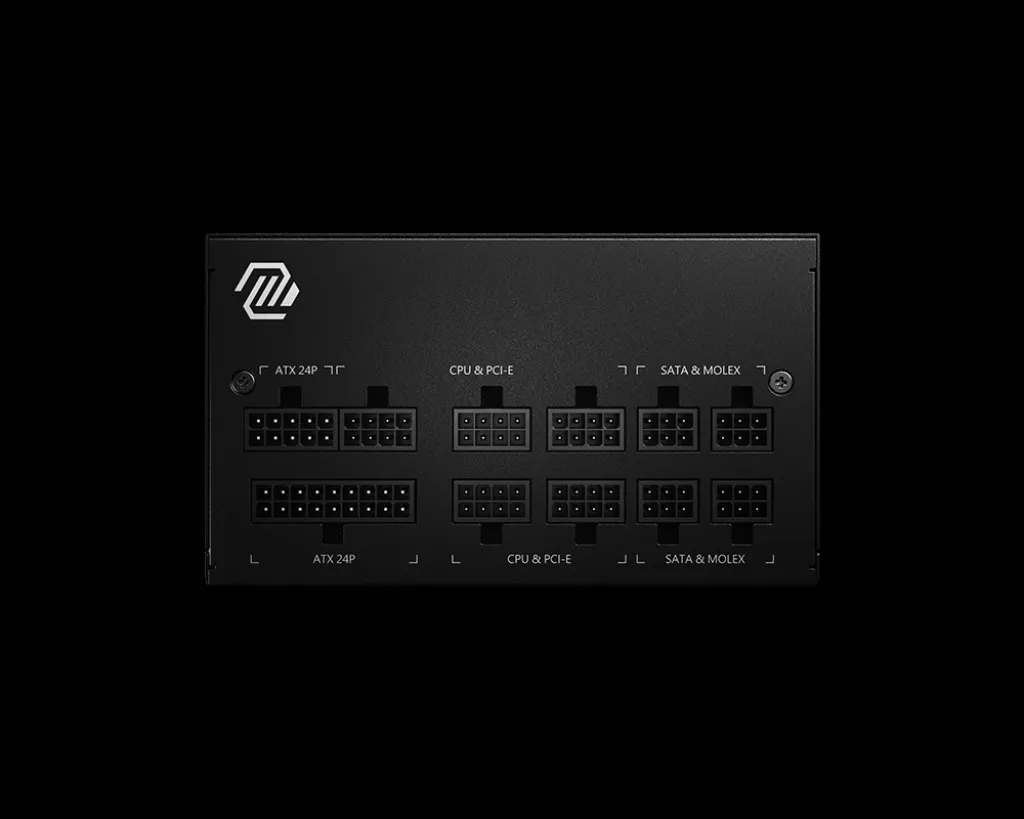

Connectors | ATX (24 pin) x 1 EPS (4+4 pin) x 2 PCI-E (6+2 pin) x 4 SATA (15 pin) x 6 MOLEX (4 pin) x 3 FDD (4 pin) x 1 |
