Brand | MSI |
---|
Efficiency Rating | 80 PLUS Gold (up to 90%) |
Modular | Yes (full modular) |

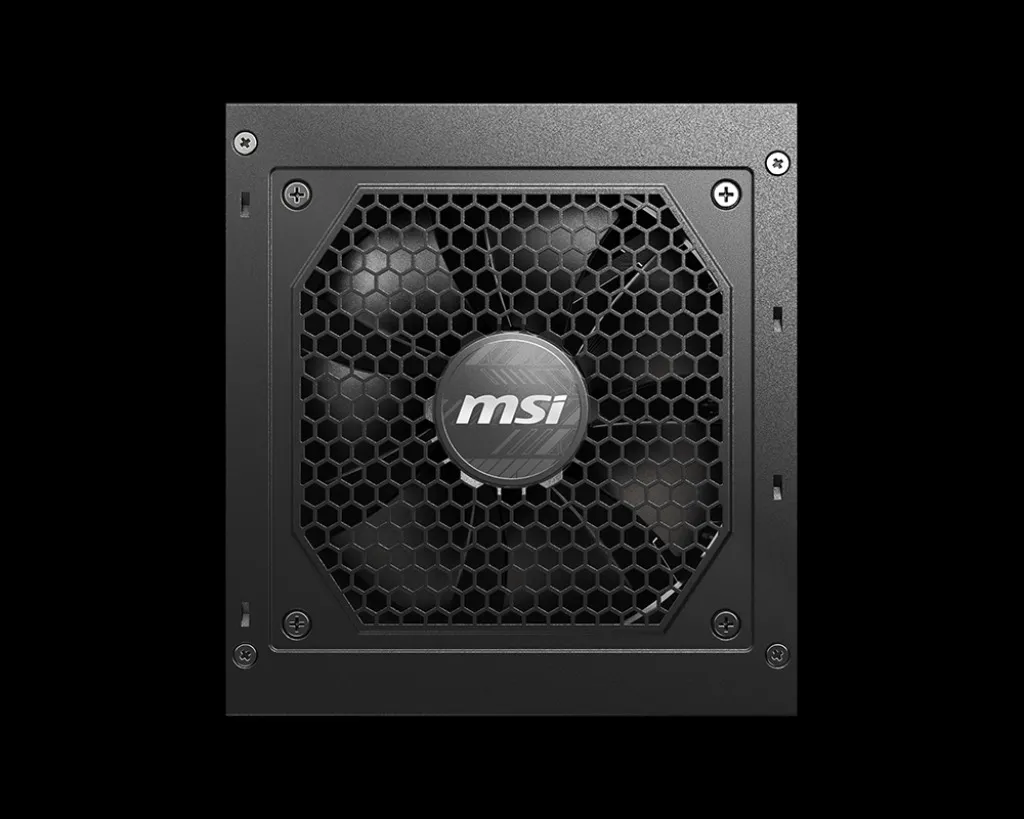

Fan Size | 120 mm |
Fan Bearing | Fluid Dynamic Bearing |
Dimensions (DxWxH) | 140 x 150 x 86 mm |
PFC Type | Active PFC |
Input Voltage Range | 100~240 VAC |
Power Watt | 750W |
Power Excursion | 1500W (*up to 200% of the PSU’s rated power for 100μs) |
Input Frequency Range | 47-63Hz |
Protection | OCP / OVP / OPP / OTP / SCP / UVP |

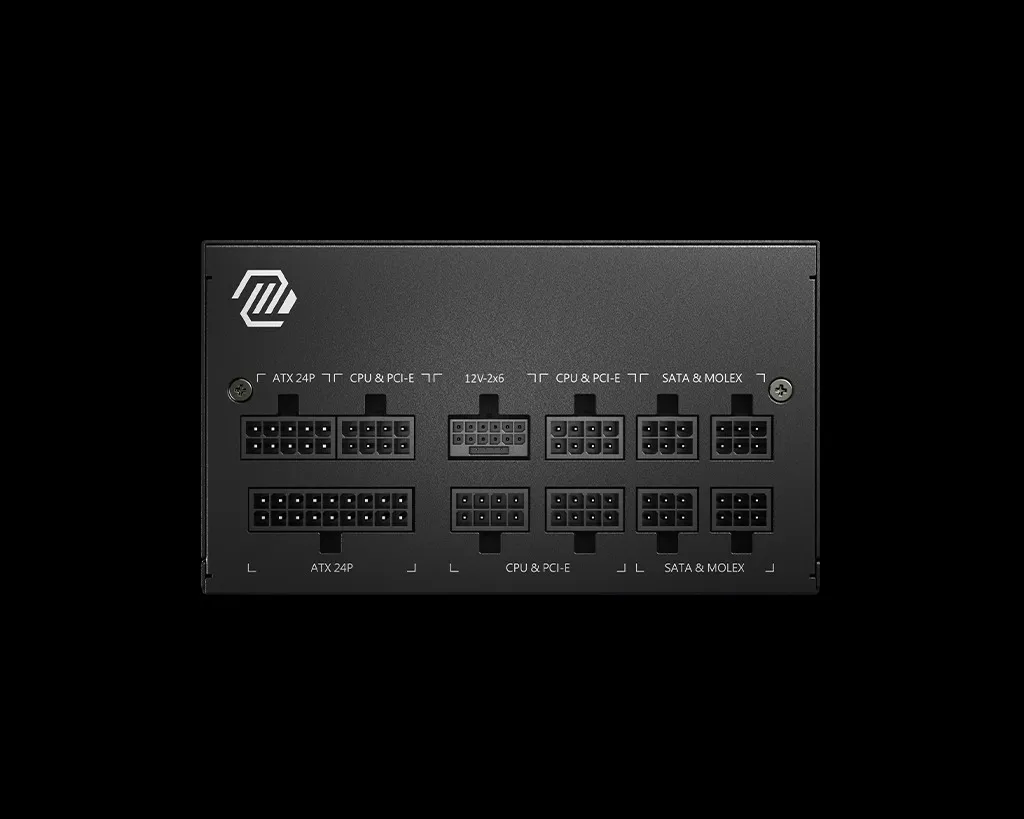

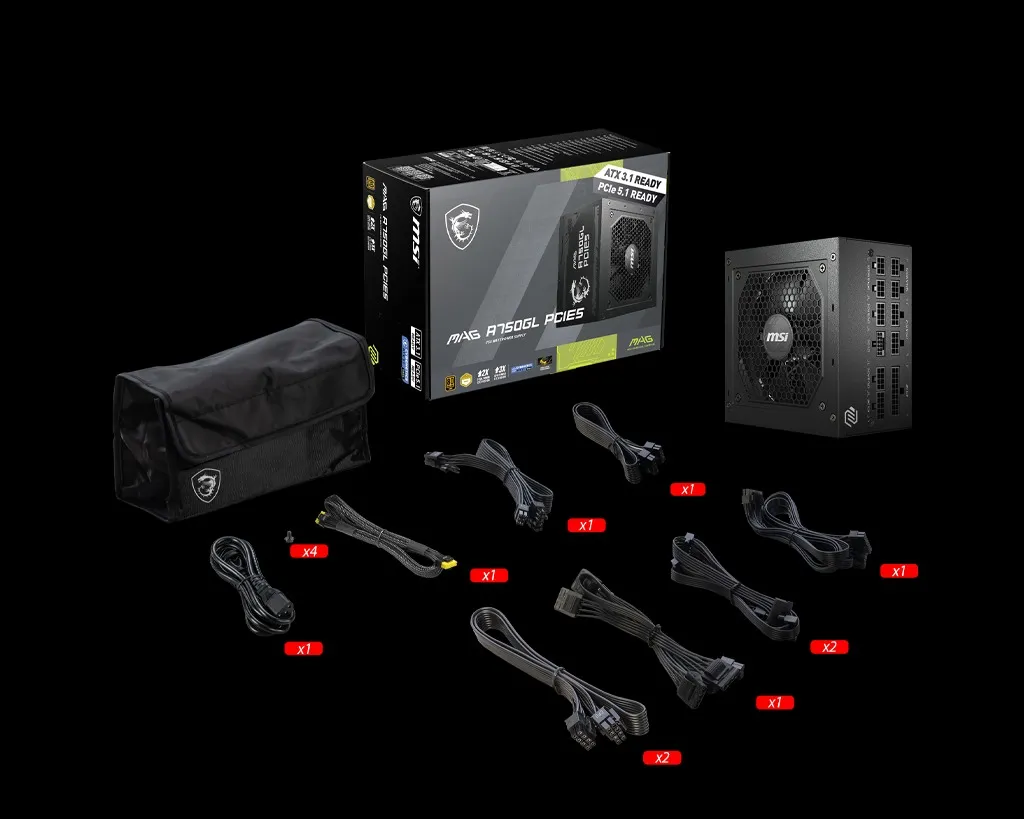

Cables | 1x ATX (24 pin) 2x EPS (4+4 pin) 1x PCI-E 5.0 (16 pin) (450W) 3x PCI-E (6+2 pin) 8x SATA (15 pin) 4x MOLEX (4 pin) 1x FDD (4 pin) |
