Motherboard

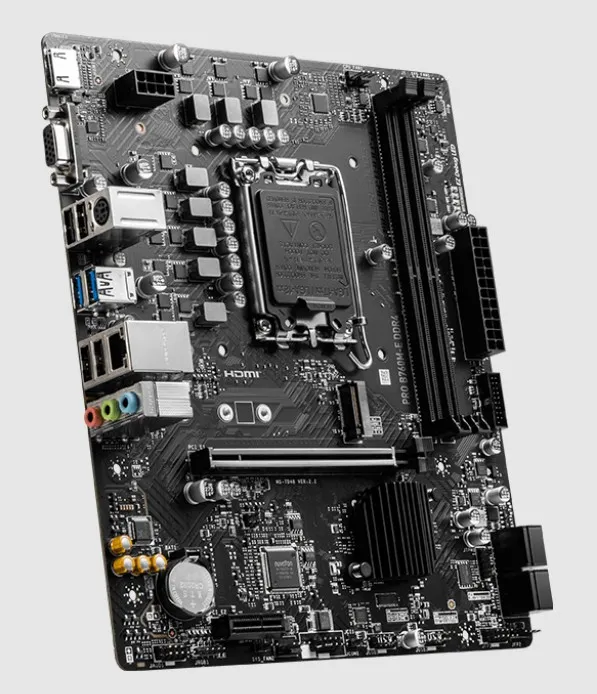

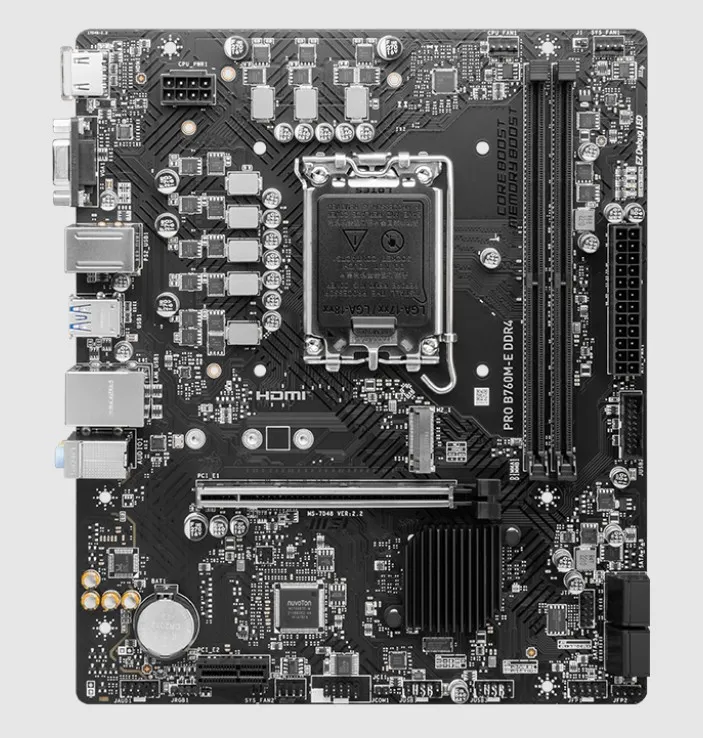

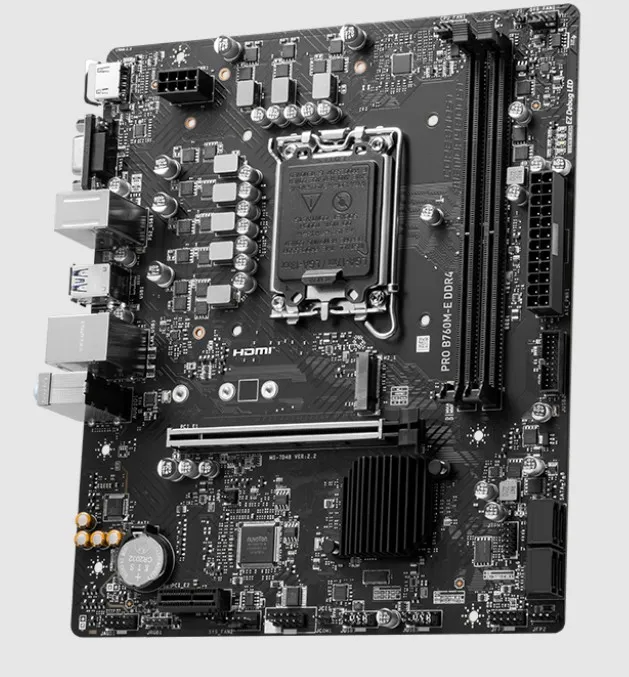

MSI PRO B760M-E DDR4 (VGA/HDMI)
Incoming Stock
₱5,500
₱6,500
Cash price
1
📱 Pay via GCash, Bank Transfer
📦 Delivery available
About this item
Specifications
| CPU | LGA1700 socket Supports Intel® 14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron® |
| Chipset | Intel® B760 |
| Memory | 2 x DDR4 DIMM slots, up to 64GB Supports DDR4 up to 4800 MT/s (OC) Dual-channel Supports XMP |
| Onboard Graphics | 1 x HDMI 1.4 (4K@30Hz) 1 x VGA |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU) 1 x PCIe 3.0 x1 (Chipset) |
| Storage | 1 x M.2 (PCIe 4.0 x4 / SATA) 4 x SATA 6Gb/s RAID 0/1/5/10 (SATA) |
| Audio | Realtek® ALC897 7.1-channel HD audio |
| LAN | Realtek® RTL8111H Gigabit LAN |
| USB | Rear: – 2 x USB 3.2 Gen1 (5Gbps) – 4 x USB 2.0 Front: – 2 x USB 3.2 Gen1 – 4 x USB 2.0 |
| Internal I/O Connectors | 1 x 24-pin ATX 1 x CPU power 1 x CPU fan 2 x system fan headers 1 x RGB header 1 x TPM header 1 x COM header 2 x front panel headers 1 x chassis intrusion 1 x front audio USB headers (2.0 / 5Gbps) |

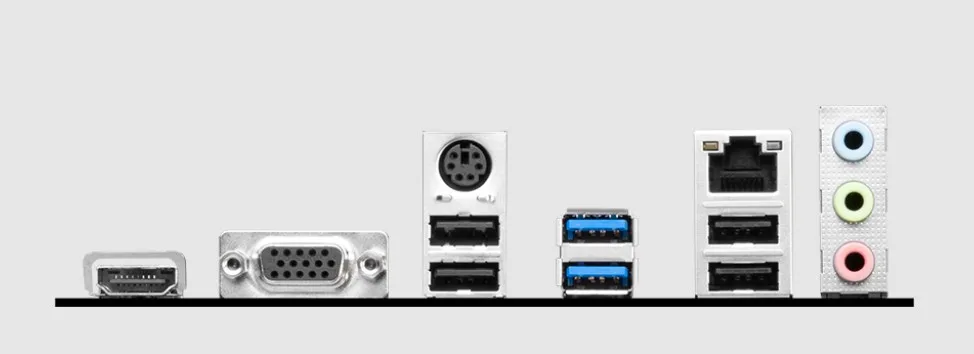

| Back Panel Ports | 1 x HDMI 1 x VGA 1 x PS/2 combo 2 x USB 3.2 Gen1 4 x USB 2.0 1 x LAN audio jacks |
| LED Features | EZ Debug LEDs |
| Operating System | Windows 10 / 11 (64-bit) |
| Form Factor | Micro-ATX; 200 mm x 236.16 mm |
Quick Info
🏷️ BrandMSI
🛡️ Warranty1 Year Service Center
30 days In-Store Replacement
30 days In-Store Replacement
🔗 Product PageView on MSI Website
