4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN
Realtek® 8126VB 5G LAN
Internal IO
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ beBluetooth® 5.4

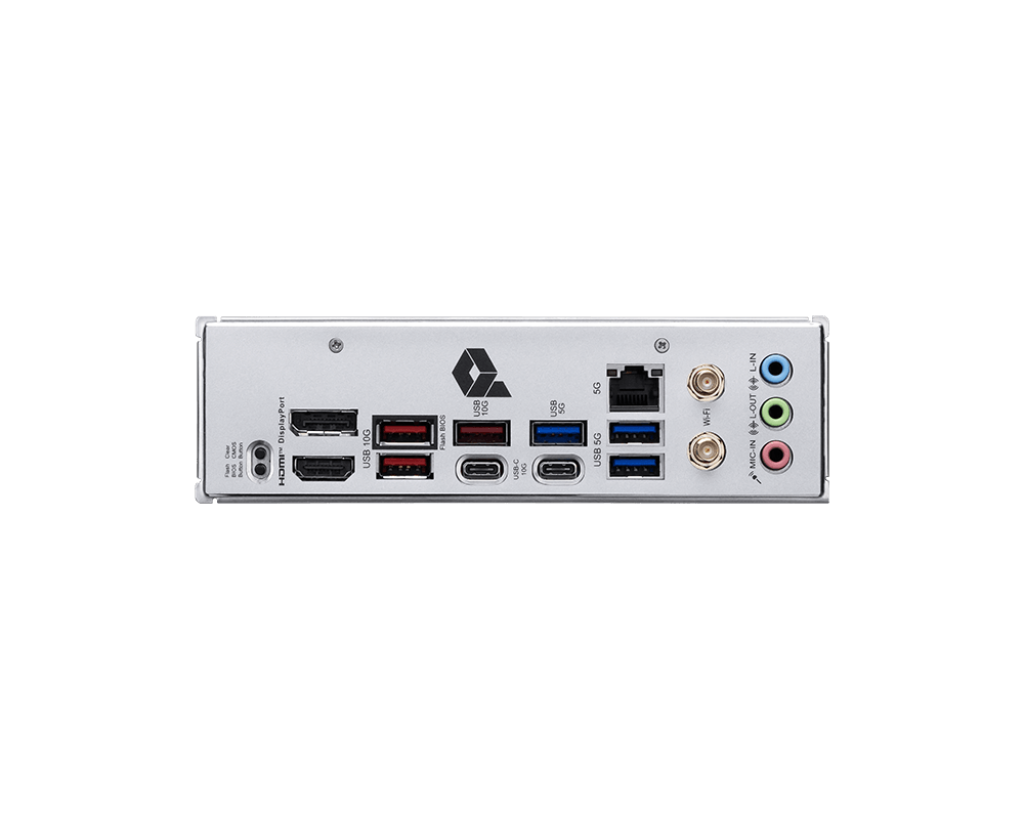

BACK PANEL PORTS
Clear CMOS Button
DisplayPort
USB 10Gbps Type-A
USB 10Gbps Type-A
USB 5Gbps Type-A
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 5Gbps Type-A
