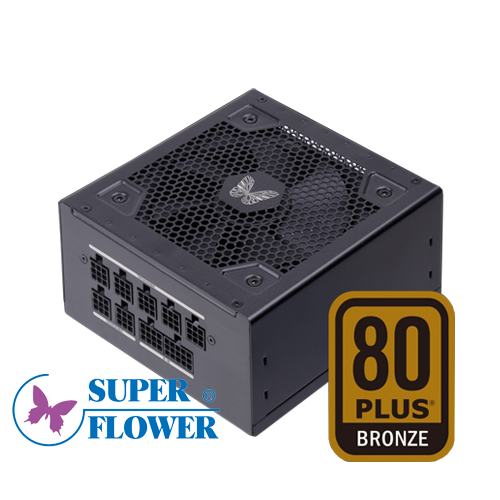

Super Flower LEADEX III 650W BRONZE (Full-Modular)
Out of stock

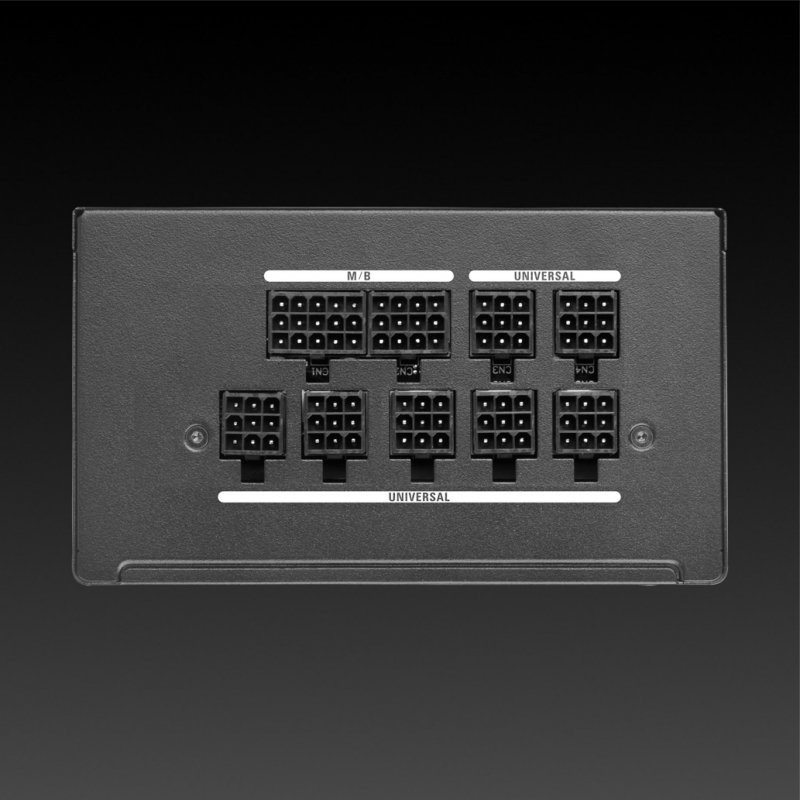

♦ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.
♦ Patented universal SUPER CONNECTOR for installation freely at will.
♦ 20+4pin connector with patent buckle design.
♦ 80 PLUS® Bronze Certified, 82% 85% 82% Efficiency At 20% 50% 100% Rated Load
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦ Comply With ATX 12V v2.52, EPS 12V v2.92 Specification.
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
♦ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
♦ More than 2,000 times On/Off test.
♦ Lead-Free Green Materials with RoHS / WEEE Compliance.

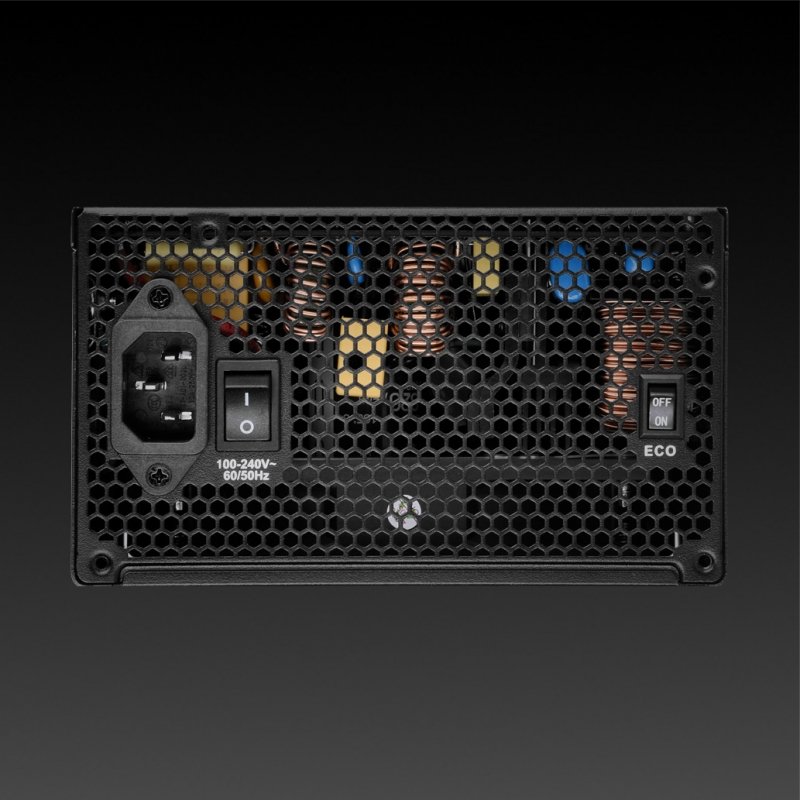

♦ Full Range Auto Voltage Detection Design from 100V ~ 240V (Active PFC).
♦ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
♦ Japanese 105°C Main Capacitor.
♦ LLC Resonant Converter With DC-DC Platform.
♦ ECO Intelligent Thermal Control System.
1. Auto & ECO Fan control
2. High efficiency on all rails, including 5VSB
SOLD OUT
Note: Price may change without notice! Message us by clicking "Inquire now" for the updated price and availability.
Out of stock
Compare| Model No.: | SF-650R14HE | |||||||
| Transform Efficiency | >82% 85% 82% Efficiency At 20% 50% 100% Rated Load (115V) | |||||||
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 2.52 | |||||||
| AC Input | Frequency | 100V-240V | 60 / 50HZ , Full Range APFC | |||||||

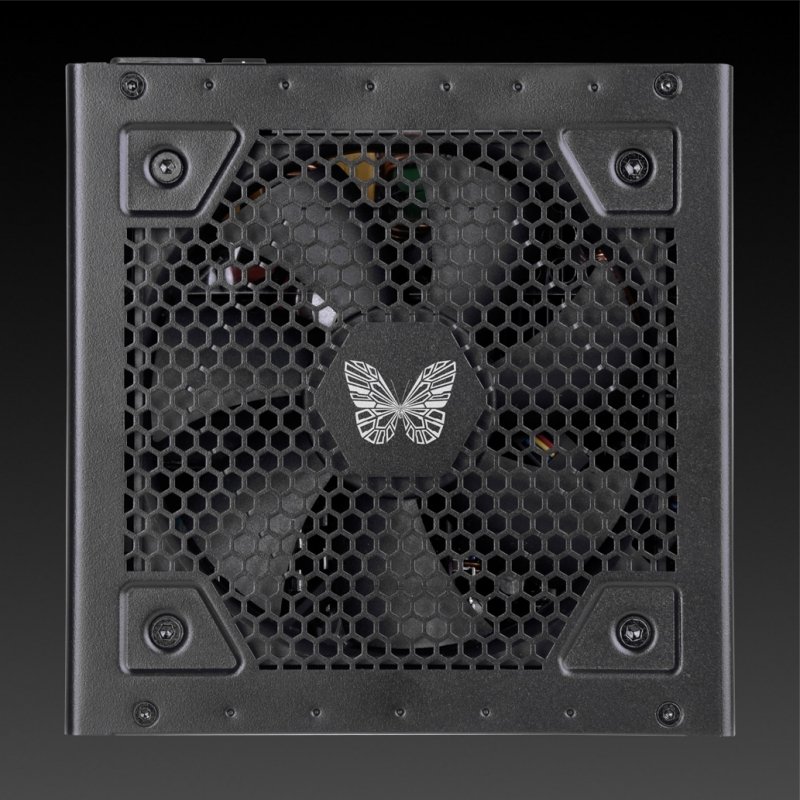

| Fan Size | 120mm F.D.B. Cooling Fan | |||||||
| Dimension | 150(L)x150(W)x86(H) mm | |||||||
| Protection | Over Voltage Protection Over Current Protection Over Power Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection Low Voltage Protection No Load Operation Surge & Inrush Protection |
|||||||
| Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / RoHS / EAC | |||||||
| Temperature | Passed 50℃ Hot Testing | |||||||

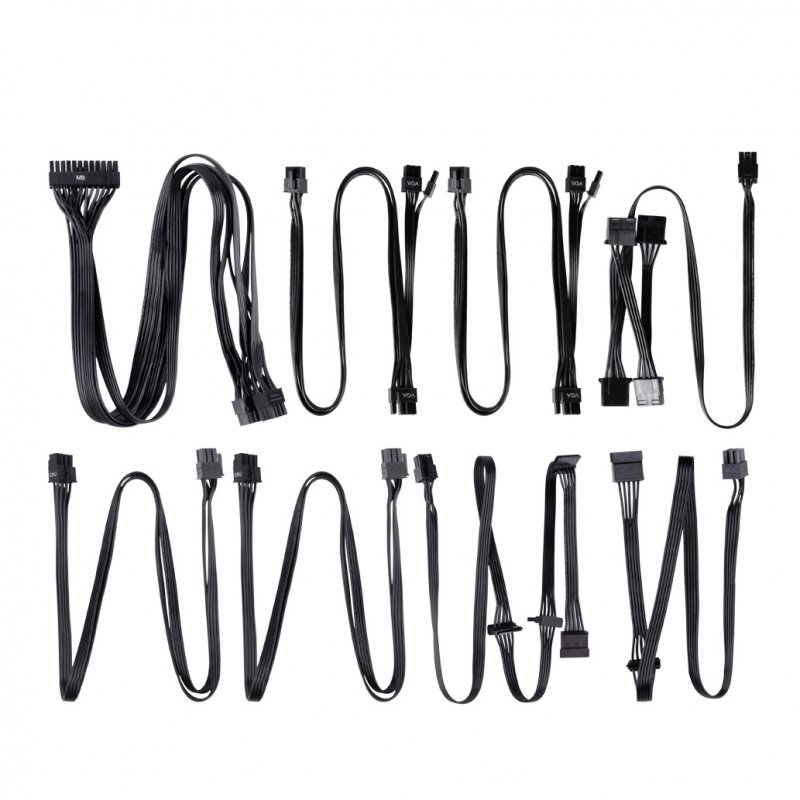

| Cable Wires | ||||||||
| 20+4 Pin | Detachable | One Cable (600mm) | ||||||
| 8(4+4) Pin CPU | Two Cables (700mm) | |||||||
| SLI (2 x PCI 6+2 Pin) | Two Cables (550+150mm) | |||||||
| 4 SATA | One Cable (550+130+130+130mm) | |||||||
| 2 SATA | One Cable (550+130mm) | |||||||
| 4 Molex | One Cable (550+150+150+150mm) | |||||||
